Description

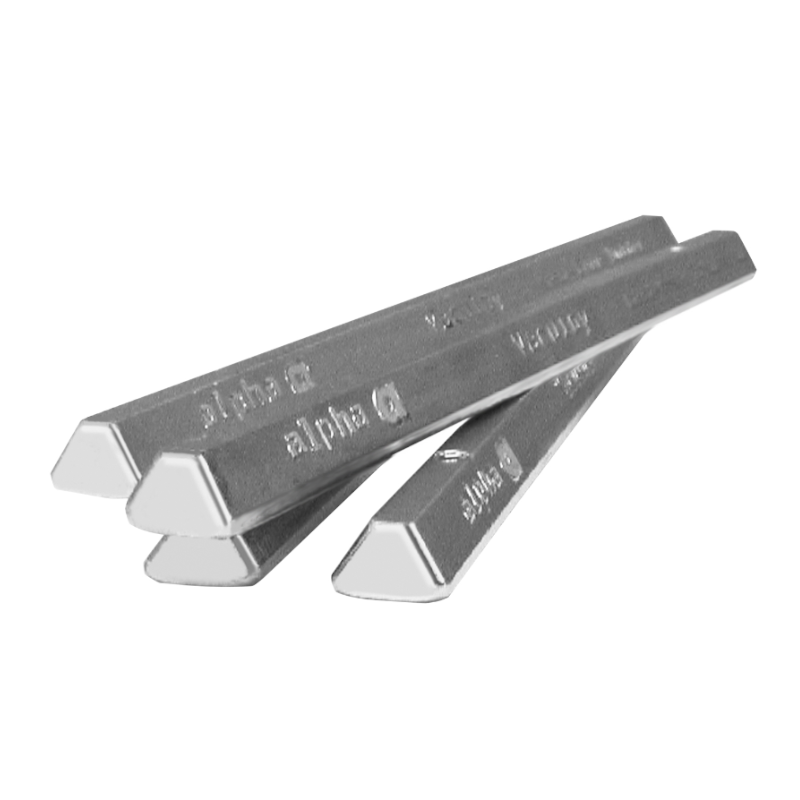

ALPHA Vaculoy Wavesolder Bar 1KG SAC300 ultra low lead
ALPHA® wave solder and soldering bar metals (wave soldering alloys) offer best value soldering performance – quality solder bar metals products at the lowest cost of ownership, and thanks to a global copy exact product policy, consistency of wave solder supply is assured. ALPHA Vaculoy Wavesolder Bar 1KG SAC300 delivers:
- High Purity
- Excellent solderability
- Good wetting
- Low oxides, low drossing
- Solder bar, chunks, anodes, preforms and solid wire
- VACULOY® alloy conditioning process
- Supplied in 1Kg bars, packaged in boxes of 20Kg
- Alpha part number 144899
- SAC300 is a replenishment alloy designed to stabilise the copper content in the bath
Sn96.5Ag3Cu0.5, Sn95.5Ag4Cu0.5, Sn95.5Ag3.8Cu0.7 and their replenishment alloys Sn97Ag3Cu0, Sn96.5Ag3.5Cu0, Sn96Ag4Cu0 and Sn96.2Ag3.8Cu0 are lead-free alloys suitable for use as a replacement for Sn63 alloy. The replenishment alloys are sometimes used to stabilise / reduce the copper content in the wave solder bath, this requirement will depend on process conditions. As with all Alpha Assembly Solutions bar solder, Alpha’s proprietary Vaculoy® alloying process is used to remove certain impurities, particularly oxides.
Key features:
- Yield – Best in class yield, out performs all Sn/Cu based materials
- Wetting speed – fast wetting, in back to back tests 0.65s compared to 1.00s, for Sn/Cu based materials
- Dross generation – Low dross generation delivered by Vaculoy alloy conditioning
- Excellent solderability due to fast wetting speed
- Very good drainage, has lower levels of bridging compared to Sn/Cu alloys
- Delivers excellent performance across a wide range of Flux technologies
- The proprietary Vaculoy process is a highly effective method for removing included oxides from solder. This is extremely important because included oxides generate excessive drossing and increase the viscosity of the solder. Solder with higher viscosity can result in increased soldering defects (i.e solder bridging)
Advanced Manufacturing Services (AMS) Limited are proud to be the UK/ Ireland distributors for Alpha from 1st April 2020.
