Description

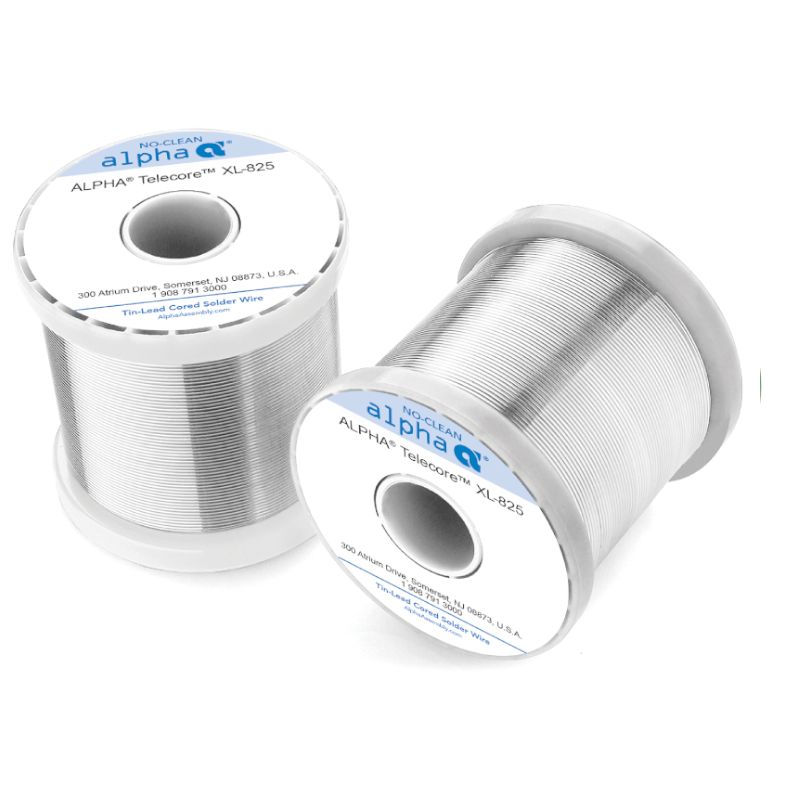

ALPHA Telecore XL-825 Solder wire Sn63 Pb37 Leaded
ALPHA Telecore XL-825 Solder wire Sn63 Pb37 is suitable for use in any commercial no-clean hand soldering application that specifies compliance to JIS grade AA standard. It offers the balance of high SIR reliability and excellent spread characteristics. The pay off is not only an excellent soldering performance, but also a reliable material that is able to comply to IPC flux ROL1 classification.
ALPHA Telecore XL-825‘s fast wetting and low spattering characteristics make it excellent for manual assembly and drag soldering applications. It is safe to use and operator friendly. Inspection is also made easier by its clear residue.
Available diameters and fluxes:
- 157614 – SN63 PB37 TELECORE XL-825/138 0.8MM 1KG
Key features:
- Very fast wetting → Excellent for “Drag Solder” Technique. High Throughput
- Very low flux spatter → Safe to use, Operator Friendly Less Residues on Boards.
- Good spread characteristics → Excellent First Pass Solder Joints, conferring high throughput. JIS Spread ≥ 80%.
- Very low levels of fumes → Cleaner Working Environment. Less Extraction Maintenance.
- Clear non-tacky residue → No-Clean Residues. Useful for all Applications.
- Provides good joint appearance → Makes Inspection easy
ALPHA Telecore XL-825 is suitable for use in any commercial no-clean hand soldering application that specifies compliance to JIS grade AA standard.
It is suited to such areas of industry (subject to the above criteria) as TV, Audio equipment, Video/DVD, Games box, Automotive, Computer and peripherals, mobile and handheld devices, PV module assembly and all types of household appliances. Flux content of 2.2% would be sufficient for most soldering applications as mentioned.
Advanced Manufacturing Services (AMS) Limited is proud to be the UK/ Ireland distributors for Alpha products. We have a wealth of material and process knowledge so please call to discuss your application with one of our engineers, contact us by email or call +44 1260 270950.
