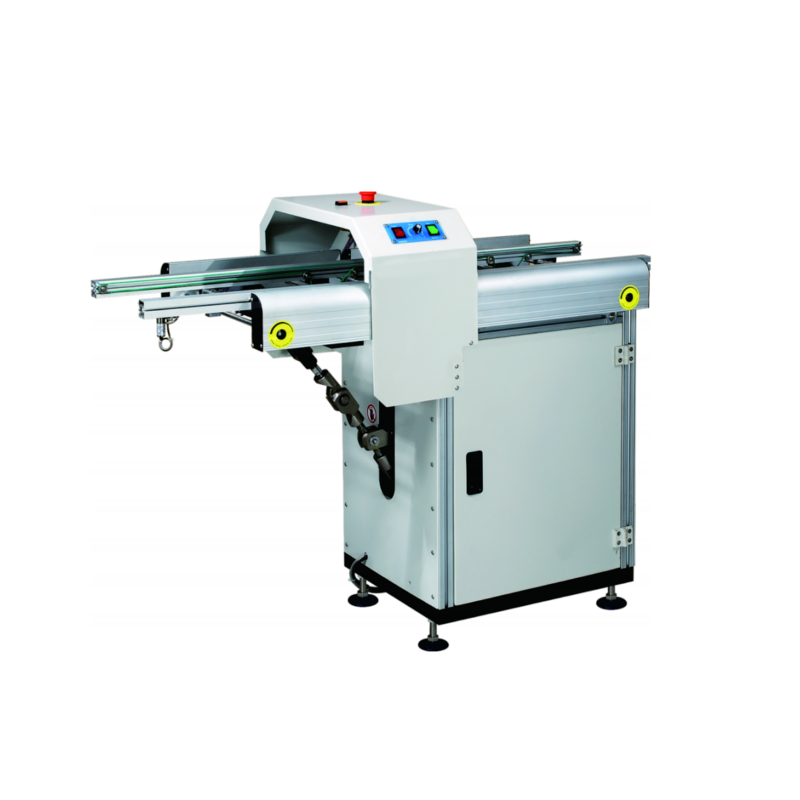

Eflex SMT Lowering Gate Conveyor
The Eflex SMT Lowering Gate Conveyor unit is used to allow passage across the line when required. Eflex SMT Lowering Gate Conveyor operates the lowering & lifting of the gate conveyor by push buttons. The Eflex SMT Lowering Gate Conveyor is fitted with safety sensors to stop any accidents occurring.
Features
- Lowering & lifting of the gate conveyor is done by push buttons
- Safety sensor installed to enhance safety
- 650mm passage way, or specify
- Variable speed control
- Conveyor height 950±30mm
- SMEMA compatible
Technical Parameters
- Belt Type – Antistatic Flat Belt of 3mm width
- Conveyor Speed – 0.5-20m/min or specify
- Power Source – AC 220V, 50/60Hz, 1 phase
- Power Consumption – 100W Max.
- Air Pressure & Consume – 4-6 bar, 48 l/min Max.
- Cycle Time – Approx. 6 seconds
Specifications
- Size – XL
- Model – LS-022SD3BXL
- Machine Dimensions (mm) (LxWxH) – 1200 x 619 x 1062
- Effective PCB Size (mm) – 50 x 50 – 530 x 460
- Weight (Kg) 200
For further information regarding our Eflex SMT range of PCB handling please contact us
