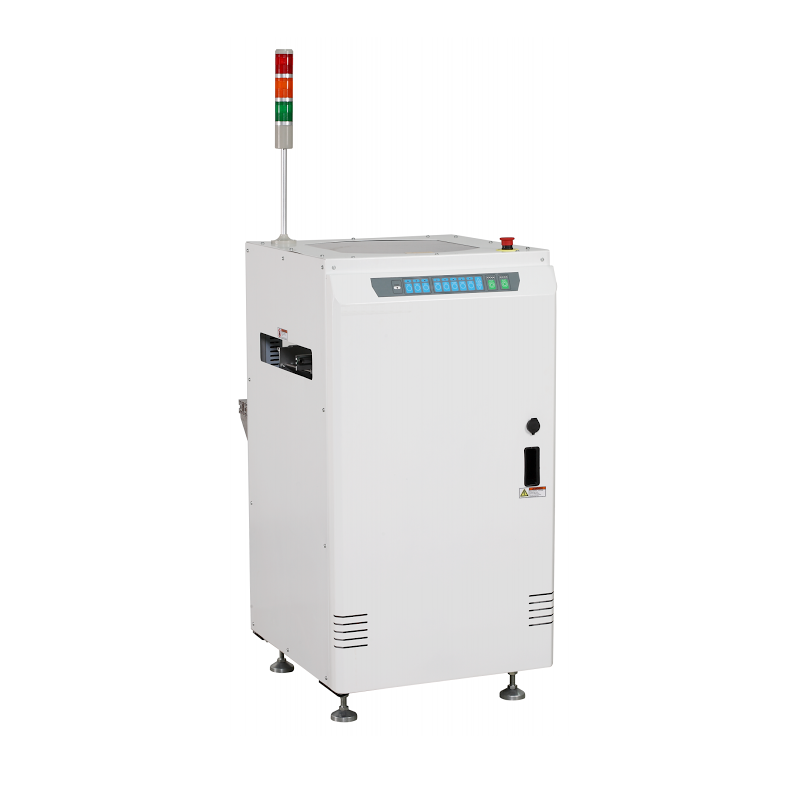

Eflex SMT Turning Conveyor
The Eflex SMT Turning Conveyor unit is used to redirect the PCB flow in a production line (90°, 180°, 270°). With the addition of the Eflex SMT Turning Conveyor into your SMT line, it allows you to be flexible with your layout.
Features
- User friendly soft touch LED membrane control panel
- Enclosed design with built-in torque limiter to ensure a high
- level of safety
- Smooth and precise rotation
- Conveyor height 950±30mm
- SMEMA compatible
Technical Parameters
- Belt Type – Antistatic Flat Belt of 3mm width
- Cycle Time – Approx. 12 seconds
- Power Source – AC 220V, 50/60Hz, 1 phase
- Power Consumption – 300W Max.
Specifications
- Size – M /L /XL
- Model – LS-210SD3BM / LS-210SD3BL / LS-210SD3BXL
- Machine Dimensions (mm) (LxWxH) – 700 x 695 x 1200 / 723 x 789 x 1200 / 803 x 860 x 1200
- Effective PCB Size (mm) – 50 x 50 – 330 x 250 / 50 x 50 – 445 x 330 / 50 x 50 – 530 x 460
- Weight (Kg) – 350 / 380 / 410
For further information regarding our Eflex SMT range of PCB handling please contact us
