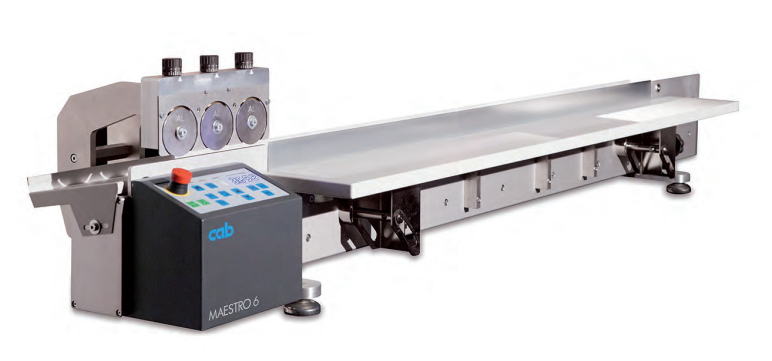

CAB PCB Separator MAESTRO 6
Separate pre-scored PCBs up to 1,500 mm in length with minimum stress with the CAB PCB Separator MAESTRO 6
The CAB PCB Separator MAESTRO 6 is the newest development of the CAB PCB separators. You can now separate PCBs with lengths of 1,500 mm with minimum stress on components.
Lengthy PCBs are separated quickly, economically and stress-free. The power unit of the carriage is right behind the linear blade. This crucially simplifies the separation and removal of the PCBs.
Dial gauge
In order to separate without stress and to maintain a long service life, the circular and linear blades have to be guided along the entire separation. The dial gauge setting and regularly checking the parallelism is assembled to the carriage.
Important features
- PCB materials FR4, CEM3 and aluminium
- Circular blades are adjusted one by one
- Separation length can be adjusted continuously
- The height of the support table is ergonomically adjustable.
- For preventive maintenance of the blades the cutting performance is indicated.
- A conveyor belt can be provided to automatically store the separated PCBs.
Versions
MAESTRO 6/X03
- Separation of FR4, CEM3 and aluminium PCBs up to lengths of 1,500 mm
- Simple and quick change of FR4/CEM3 blades to aluminium blades or the other way round
- Height of circular blades to the linear blade to be set individually
- Circular blade diameter: 125 mm
- Separation speed up to 500 mm/s
- Materials: FR4, CEM3
- Component height Component side up to 34 mm and Solder side up to 22 mm
- Width x Height x Depth 1,150 x 410 x 450 mm 1,450 x 410 x 450 mm
- Weight 50 kg-55 kg
MAESTRO 6/X01
- Separation of FR4 and CEM3 PCBs up to lengths of 900 mm; further lengths on request.
- Circular blade diameter 185 mm
- Separation speed up to 500 mm/s
- Materials: FR4, CEM3
- Component height: Component side up to 63 mm and Solder side up to 22 mm
- Width x Height x Depth 1,150 x 410 x 450 mm
- Weight 50kg
MAESTRO 6/601.70
- Separation of FR4 and CEM3 PCBs up to lengths of 600 mm
and component heights of 70 mm; further lengths on request - Circular blade diameter 185 mm
- Separation speed up to 500 mm/s
- Materials: FR4, CEM3
- Component height Component side up to 63 mm and older side up to 22 mm
- Width x Height x Depth 1,150 x 410 x 450 mm
- Weight 50 kg
