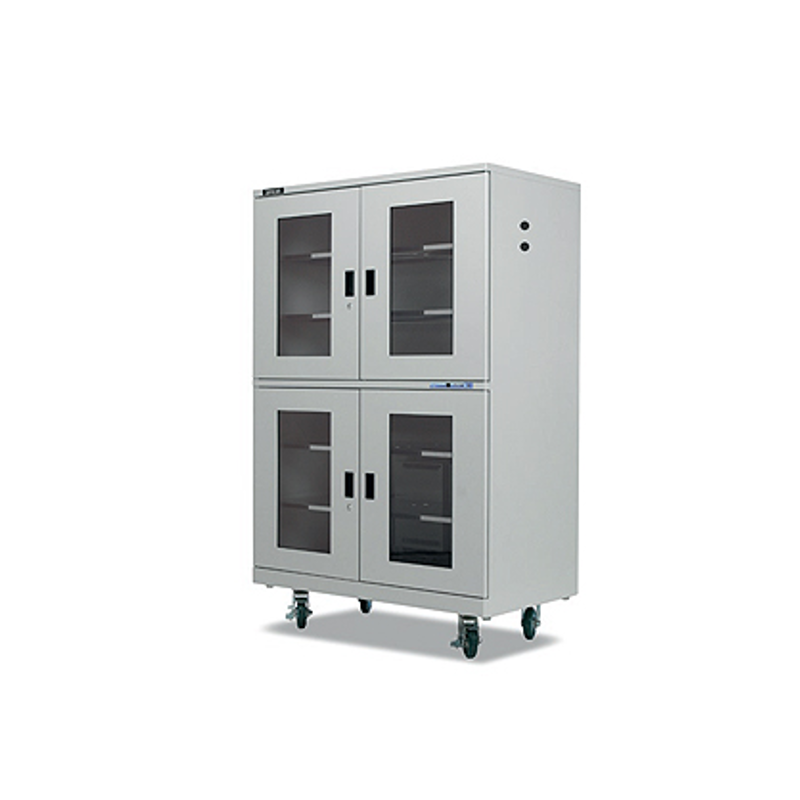

Super Dry SD 1104-21 Dry Store Cabinet
The Super Dry SD 1104-21 Dry Store Cabinet Dry Store Cabinet is the 4 door version of the highly successful SD range manufactured by Totech.
The SD Series is equipped with a dynamic drying unit U 2000. It is engineered for medium to long-term constant low humidity storage of ≤1% RH. Humidity, temperature & alarm functions are shown and can be adjusted on a digital display. The circulation of air in the cabinet is regulated through an internal fan.
The Super Dry SD 1104-21 Dry Store Cabinet is ideally suited for applications where storage of devices is required with a relative humidity of less than 1% RH at 25°C. Storage of moisture sensitive devices such as LED’s can be achieved whilst supporting the device reel thanks to custom designed electronic device reel rack. The Super Dry SD 1104 21 Dry Storage Cabinet is a favourite among medical, laboratory and digital media storage applications.
All surfaces are ESD coated in conformity with current ESD 61340-5-1 standard. The SD range is ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies and conforms with IPC/JEDEC J- STD-033C & IPC-1601.
Please click on the video tab above for a brief outline of the SD/SDB range.
Key features:
- Accuracy of sensor RH% & T °C: +/- 3% RH, +/-0.3 °C
- 4 Doors locked with key
- ESD safe design – Norm (IEC 61340-5-1) ESD metal painted body (10-6 Ohm/sq). Dissipative glazing (inside and outside 10-8 Ohm/sq)
- 5 height adjustable chrome steel shelves
- Door alarm – door is equipped with a switch which triggers the humidity or door alarm if the preset value is exceeded
- U-2000 Dry Unit
- ESD wristband can be connected to the cabinet
- 21 series digital panel providing very convenient settings of RH%, temperature, alarm and calibration functions
- Pre-mounted holes for optional nitrogen unit & heater
- 5 meter cable with IEC plug
Benefits:
- The drying unit is maintenance free
- Low energy consumption – average power consumption 35 W/h
- Recovery time after opening door ≤35 min to below 1%. (after 1 door opening)
- Datalogging through network with software
- Heater temperature – Maximum up to 40°C (optional)
- IPC compliant according to IPC/JEDEC J- STD 033C & IPC-1601
Options:
- 40°C heater
- Additional shelves
- Humidity alarm light
- Feeder holder for Siemens X and S type
- Humidity calibrator Hygropalm 22
- SuperDry datalogger
- Humidity alarm light
- SD calibration certificate
We offer an extensive range of dry store moisture management solutions, if you are unsure of your exact requirement please contact us for free and helpful advice.
