CAB MACH4 Label Printer
The CAB MACH4 Label Printer has the same performance data as the established industrial CAB A4+ label printer . Labels and transfer ribbons are feed from the front ensuring that it needs only a small work space. The CAB MACH4 label printer can be fitted with a RFID write/read module as an option.
It offers all the features of a high class industrial printer with a wide application range. Labels and ribbons can be inserted from the front. The print mechanism and housing are made of premium materials and are perfectly harmonized in their form and function. Easy and comfortable handling and high reliability were the requirements during development.
The large display with white backlight offers optimum readability. The navigation pad with the additional “Enter” button simplifies operation, with only the operated functions being displayed.
The centred label path eliminates the need for adjustments and avoids wrinkling of the ribbon. The high-tech electronic board incorporates all the requisite interfaces as standard and works with all kinds of adapters.
The CAB MACH4 is available in 3 different formats: –
B with tear-off plate
A minimum label height of 30 mm is required for it to be torn off.
| Label printer | MACH4 B | ||
|---|---|---|---|
| Printing method | Thermal transfer / Thermal direct | ||
| Print resolution dpi | 203 | 300 | 600 |
| Print speed up to mm/s | 200 | 200 | 100 |
| Print width up to mm | 104 | 105.6 | 105.6 |

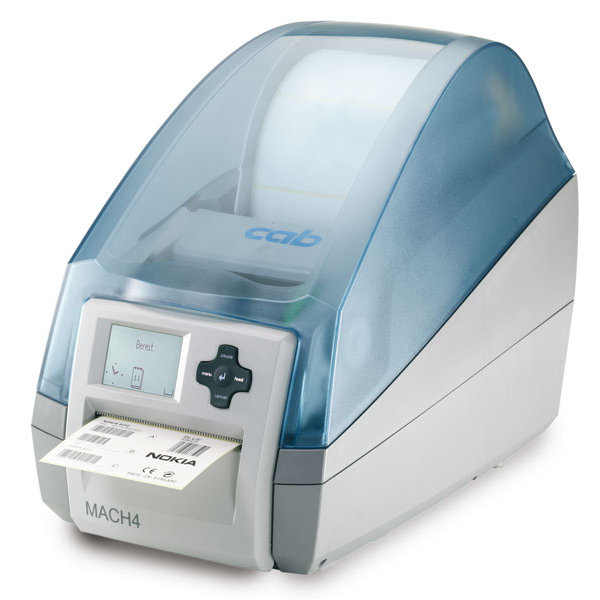

P with tear-off plate and dispensing function
The label height on dispending is 20 – 200 mm.
| Label printer | MACH4 P | ||
|---|---|---|---|
| Printing method | Thermal transfer / Thermal direct | ||
| Print resolution dpi | 203 | 300 | 600 |
| Print speed up to mm/s | 200 | 200 | 100 |
| Print width up to mm | 104 | 105.6 | 105.6 |
C with tear-off plate and cutter
Labels or continuous material can be cut at a height of just 12 mm.
| Label printer | MACH4 C | ||
|---|---|---|---|
| Printing method | Thermal transfer / Thermal direct | ||
| Print resolution dpi | 203 | 300 | 600 |
| Print speed up to mm/s | 200 | 200 | 100 |
| Print width up to mm | 104 | 105.6 | 105.6 |
For any advice on your label printing application please contact us or call +44 1260 270950
