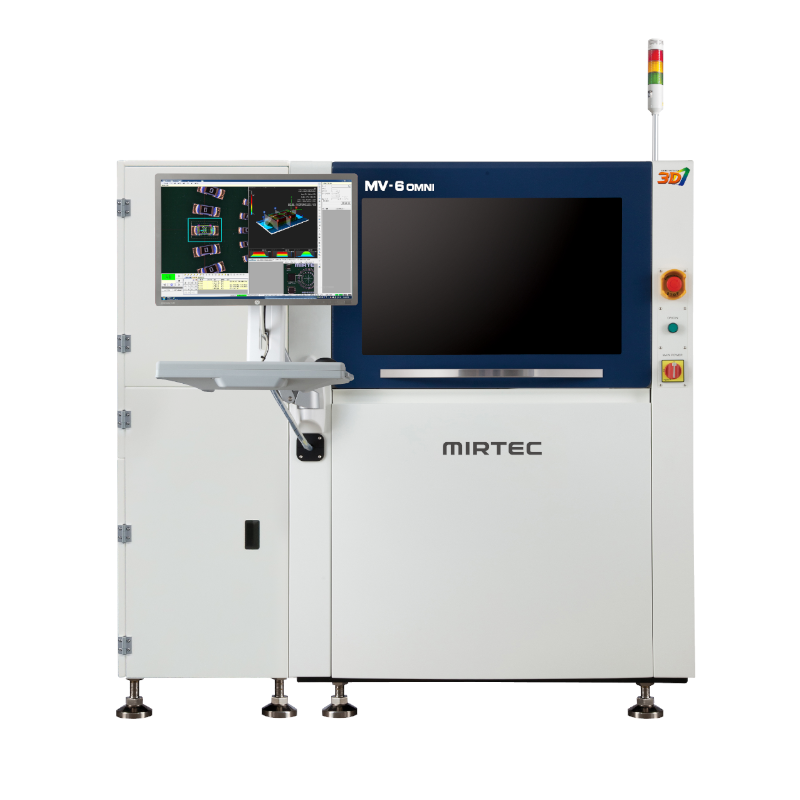

Mirtec TAL 3D SCAN System– High-Speed Pre-Inspection Module for the Mirtec MV-6 OMNI
Boost the performance of your Mirtec MV-6 OMNI 3D AOI system with the TAL 3D SCAN — a powerful inline pre-inspection module designed to dramatically reduce inspection times and increase overall productivity on your SMT production line.
What is TAL 3D SCAN?
TAL 3D SCAN is an innovative inspection module that seamlessly integrates with Mirtec’s MV-6 OMNI, one of the industry’s most advanced 3D Automated Optical Inspection (AOI) machines. This module enhances throughput by conducting a parallel pre-inspection of large components (typically over 5 mm in height) while the main AOI system is performing its full 3D inspection.
Key Benefits of TAL 3D SCAN Integration
- Faster Inspection Speeds – Pre-inspects tall components in advance, reducing total cycle time
- Increased Throughput – Effectively simulates dual-lane inspection, inspecting two PCBs simultaneously from a system efficiency perspective
- Zero Added Time – Because TAL 3D SCAN operates faster than the MV-6 OMNI, it adds virtually no delay to your inspection process
- Optimised for High-Mix, High-Speed SMT Environments – Ideal for manufacturers seeking efficiency without compromising inspection accuracy
- Seamless Integration – Designed specifically for compatibility with the MV-6 OMNI, with no need for additional conveyors or hardware changes
How TAL 3D SCAN Works
While the MV-6 OMNI carries out full 3D inspection of the PCB, TAL 3D SCAN pre-inspects large, time-consuming components simultaneously. This intelligent process dramatically shortens inspection cycles and enables a more balanced, high-efficiency AOI workflow. From the perspective of the full production line, this module essentially inspects two boards at once, offering a major step forward in AOI performance optimization.
Designed for Speed. Built for Precision.
TAL 3D SCAN leverages Mir Technology’s advanced optical algorithms to deliver rapid yet accurate results. With no compromise on quality, this solution enables electronics manufacturers to keep pace with high-speed production lines while maintaining strict inspection standards.
We also collaborate closely with Farrell Tec, led by Scott Farrell, whose deep knowledge of Mirtec systems and reputation across the industry ensure expert support from day one.
See It for Yourself – Live Demo Available in Cheshire
We have the Mirtec machines available for demonstration at our Cheshire facility. This hands-on experience gives you the chance to see the system in action and understand how it can elevate your inspection process.
Request a Demo or Quote Today
Discover how the TAL 3D scan can transform your inspection process and help you deliver flawless results. Contact AMS now to book a demo or request more information.
