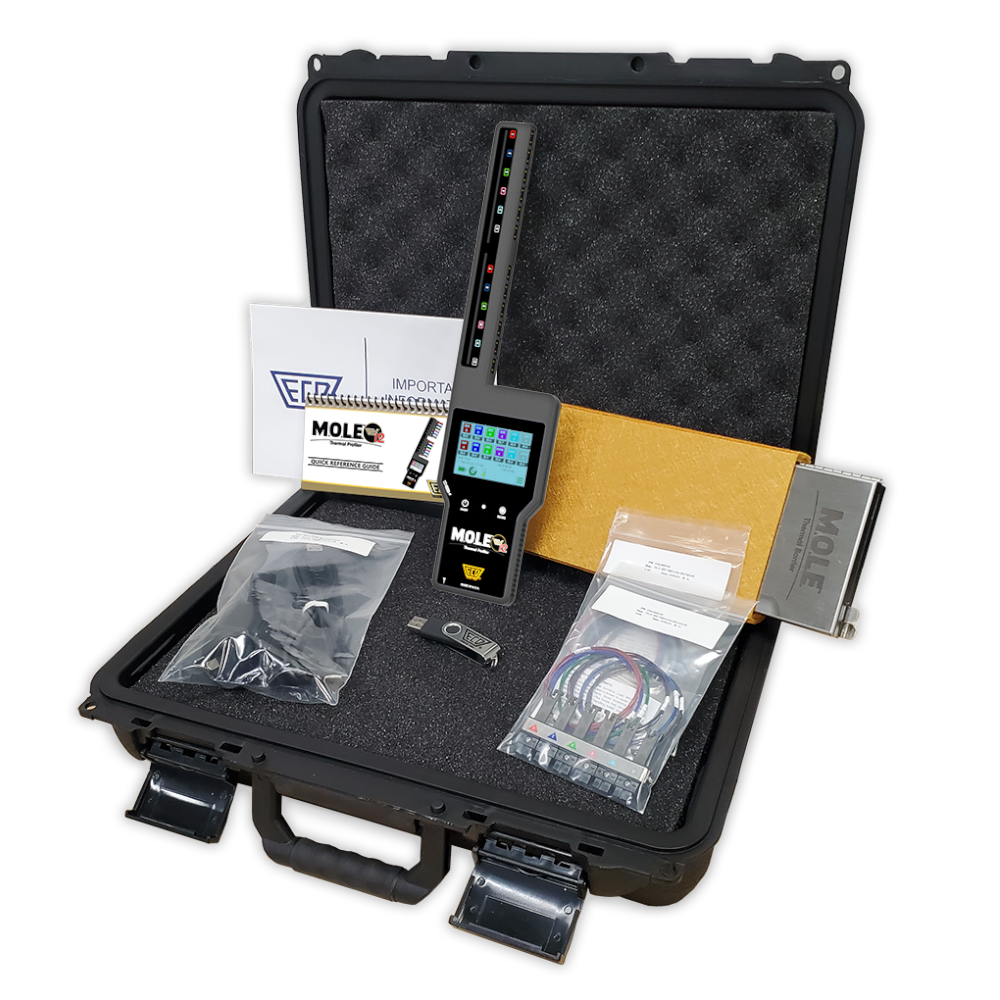

ECD MOLE EV12 12 channel thermal profiling system
The ECD MOLE EV12 12 channel thermal profiling system is ECD’s most powerful and versatile system, engineered for demanding thermal process environments that require up to 12 channels of high-accuracy data. Designed to meet the evolving challenges of multi-zone ovens, dense PCB assemblies, and critical process control, the EV12 delivers unmatched thermal insight to help manufacturers optimize quality, improve yield, and reduce rework.
Ultimate Profiling Power – 12 Channels of Precision
With 12 data acquisition channels, the MOLE EV12 provides a detailed thermal map across complex boards or assemblies. Capture precise, synchronized temperature data from multiple points in a single pass — ideal for reflow soldering, wave soldering, curing, and other multi-stage thermal processes.
Key Features:
- 12-channel high-resolution data logging
- Simultaneous multi-point temperature profiling
- Flexible thermocouple placement for deep process analysis
- Industrial-Grade Hardware, Built to Last
- Constructed for rugged manufacturing environments, the EV12’s durable chassis and advanced internal electronics ensure long-term reliability. Compact yet powerful, it fits easily within tight oven spaces and integrates seamlessly into production lines.
- Durable, factory-ready design
- Compatible with a wide range of thermal barriers
- Compact footprint for use in constrained thermal environments
- Smart Connectivity + Software Integration
- USB-C and Bluetooth for flexible connectivity
Pair the MOLE EV12 with M.O.L.E.® EV Software for a complete profiling solution. Quickly analyse profiles, visualise temperature curves, and apply pass/fail criteria to ensure every product meets process specifications. Built-in Bluetooth and USB-C support simplify data transfer and configuration.
Powerful Process Optimisation
Designed to empower process engineers and quality teams, the MOLE EV12 makes it easy to identify thermal issues, fine-tune settings, and validate process compliance.
-
- Optimize reflow profiles for consistent solder joints
- Identify cold spots or overheating zones
- Accelerate process development and troubleshooting
- Maintain traceability for audits and quality control
- Ideal for Complex Thermal Profiling Applications
- High-density PCB assemblies with multiple components
- Multi-zone reflow ovens and wave soldering systems
- Curing and conformal coating processes
- Thermal process R&D and engineering validation
✅ Why Choose MOLE EV12?
-
- 12 Channels for Maximum Coverage – Capture complex profiles in a single run with more data points
- Advanced Software for Deep Analysis -Gain insight into every aspect of your thermal process with powerful tools
- Modern Connectivity -Fast data transfers via Bluetooth or USB-C and cloud integration
- Built to Withstand Production – Industrial-grade design ensures reliable performance shift after shift
Advanced Manufacturing Services are pleased to be the UK distributor for ECD – we have a range of profiling equipment in our demonstration room in Cheshire – please contact us to arrange your demonstration today!
