Seamark PCB X5600 X-ray machine – High specification and low cost professional X-ray
The Seamark PCB X5600 X-Ray machine is a compact, powerful and precise X-ray inspection system. The X5600 offers high-performance x-ray imaging and inspection tools, integrated with 90KV X-ray source and flat-panel detector for precise inspection of solder voiding and solder defects.
The X5600 is one of the best-selling X-ray machines on the European market offering enhanced features at competitive pricing. The seamark offering allows users to bring the previously expensive and outsourced x-ray inspection process in house. This provides users with a competitive edge over their competition and also opens the doors for third party inspection revenues.
AMS offer the complete solution to X-ray inspection at the most affordable price for comparable professional electronics manufacturing X-ray machines.
Features:
- Easy to install and intuitive in operation
- High resolution X-ray imaging
- Sample size up to 280 x 320mm
- Windows 10 operating system

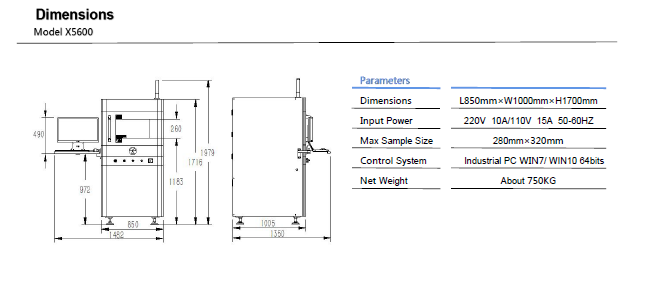

- Small footprint (1482 x 1350mm including peripheral equipment – PC and keyboard) Weight 750Kg
- Suitable for all general electronic component inspection e.g. SMT/Semicon/Solar/Connector/LED IC/PCB
- High-definition imaging: Slanting/Bridge/Voids/Cold/Solder/Bonding wire
- Infrared automatic navigation and positioning can select the target quickly
- Low operating costs
- Customised software algorithms based on product features and request to achieve fully automatic defect inspection algorithms, including Y/N, crack, broken wire, offset, size, and quantity etc.
- Colour image navigation
- Ideal entry level x-ray system
- Three operating modes – Slow, Constant and Fast

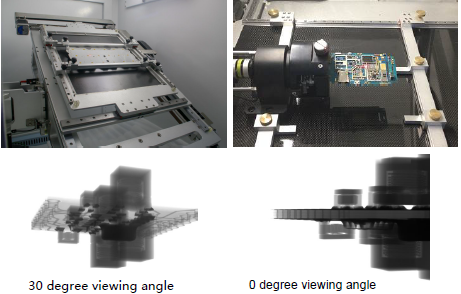

- Keyboard control X, Y, Z axis motion and angle adjustment
- Large navigation window
- Image setting: Brightness, contrast, automatic gain and exposure
- Integrated anti-collision system

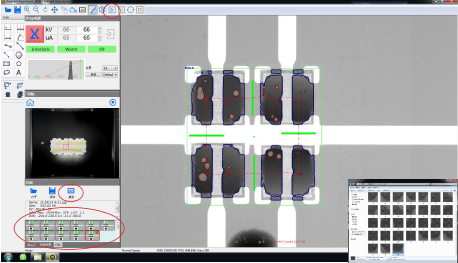

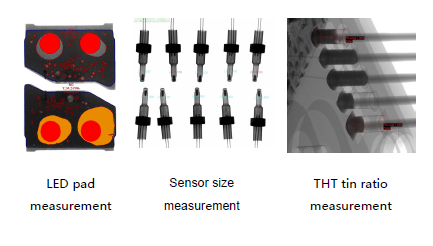

- Automatic analysis BGA diameter, void ratio calculation, size and roundness
Applications
Ideal for LED, SMT, BGA, CSP, Flip chip inspection, Semiconductor, packing components, battery industry, electronic components, auto parts, aluminum die casting, moulding plastic, ceramics, photovoltaic industry and more.
We are the UK distributor for Seamark and have a demonstration XC5600 unit in our demo facility in Cheshire, please contact us to arrange a visit.
