Description

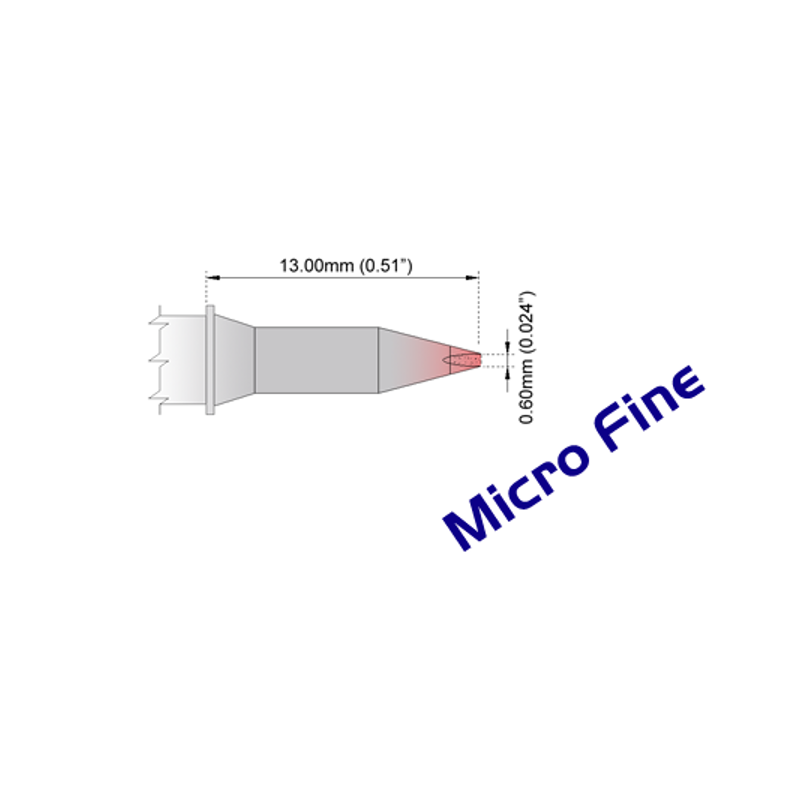

M6CH006 Thermaltronics soldering tip Chisel 30° 0.6mm
M6CH006 Thermaltronics soldering tip Chisel 30° 0.6mm, can be used with the Thermaltronics TMT-9000S-1, Thermaltronics TMT9000S-2 Metcal® MX-500, Metcal® MX-5000 and the Metcal® MX-5200 soldering systems.
M6CH006 Thermaltronics soldering tip uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 600 Series tips is 325ºC- 358ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Micro Fine Tip
- Not a Metcal copy tip
- Other temperature ranges available, please see M7CH006 and M8CH006
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
We supply a wide range of Thermaltronics irons, replacement tips and accessories, please contact us for further information and advice.
