Description

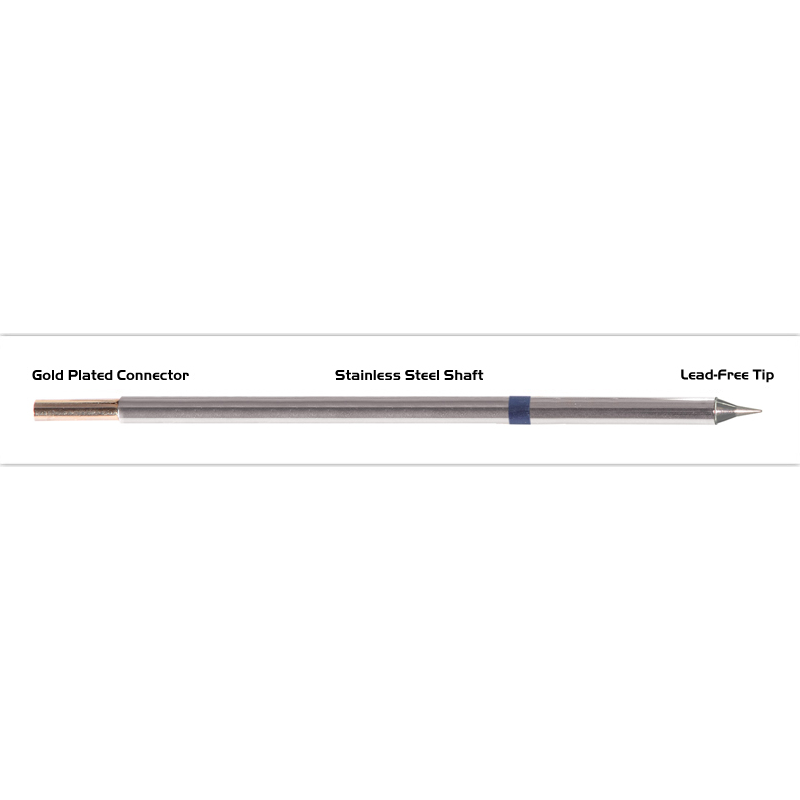

M6CS152 Thermaltronics soldering tip Conical Sharp 0.4mm STTC-022
M6CS152 Thermaltronics soldering tip Conical Sharp 0.4mm STTC-022 (0.016″) can be used with the following soldering systems:
- Thermaltronics TMT-9000S-1
- Thermaltronics TMT9000S-2
- Metcal® MX-500
- Metcal® MX-5000
- Metcal® MX-5200
M6CS152 Thermaltronics soldering tip Conical Sharp 0.4mm STTC-022 uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required.
With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 600 Series tips is 325ºC- 358ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2 soldering systems
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Not a Metcal copy tip, but equivalent to STTC-022
- Other temperature ranges available, please see M7CS152 and M8CS152
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
We are the Thermaltronics UK distributor. We supply a wide range of Thermaltronics soldering irons, tips and accessories, please contact us for further information.
