Description

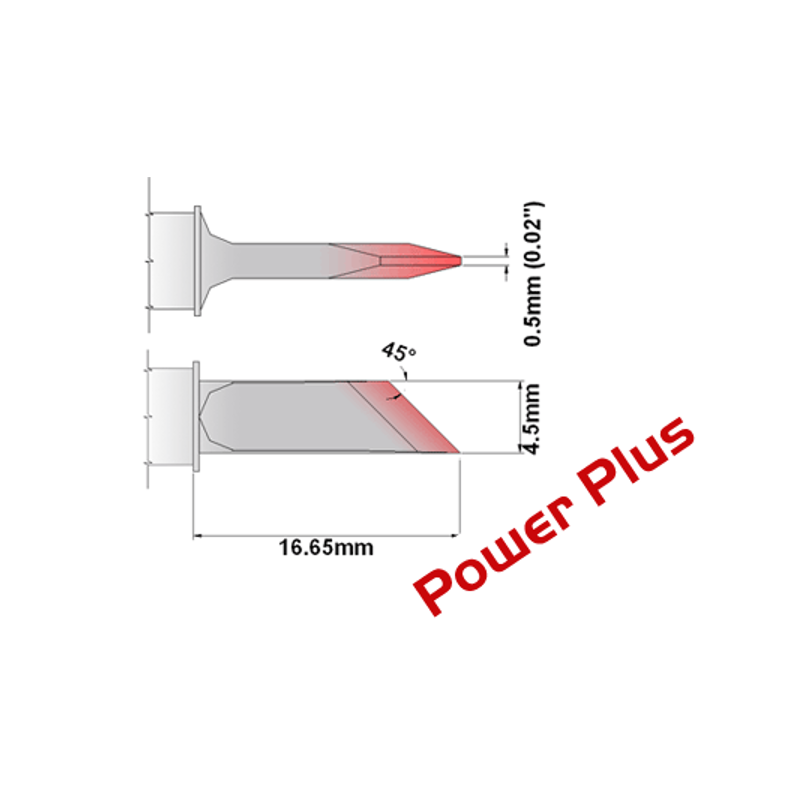

M6K100H Thermaltronics soldering tip Knife
M6K100H Thermaltronics soldering tip Knife 4.50mm (0.177″), can be used with the Thermaltronics TMT-9000S-1, Thermaltronics TMT9000S-2 Metcal® MX-500, Metcal® MX-500 and the Metcal® MX-5200 soldering systems.
M6K100H Thermaltronics soldering tip Knife 4.50mm uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 600 Series tips is 325ºC- 358ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2 soldering systems
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Not a Metcal copy tip
- Other temperature ranges available, please see M7K100H and M8K100H
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements.
We supply the full range of Thermaltronics soldering irons, tips and accessories, please contact us for further information.
