Description

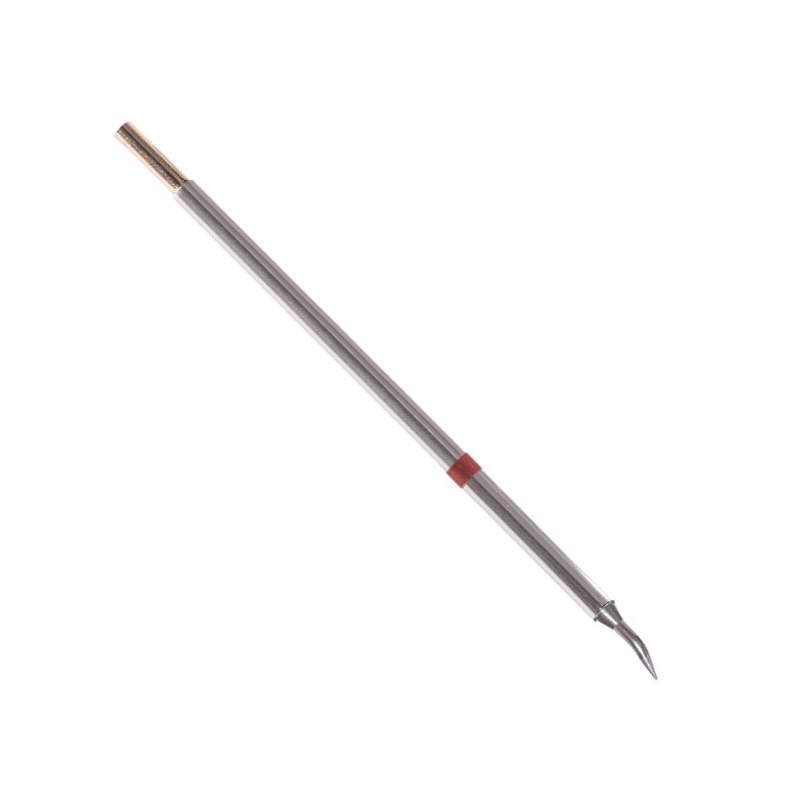

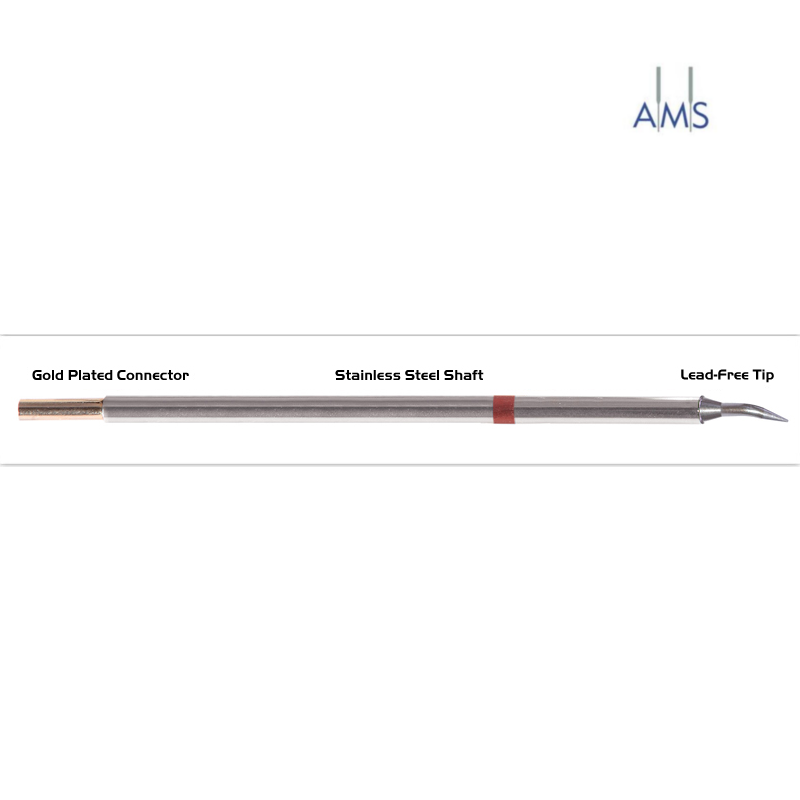

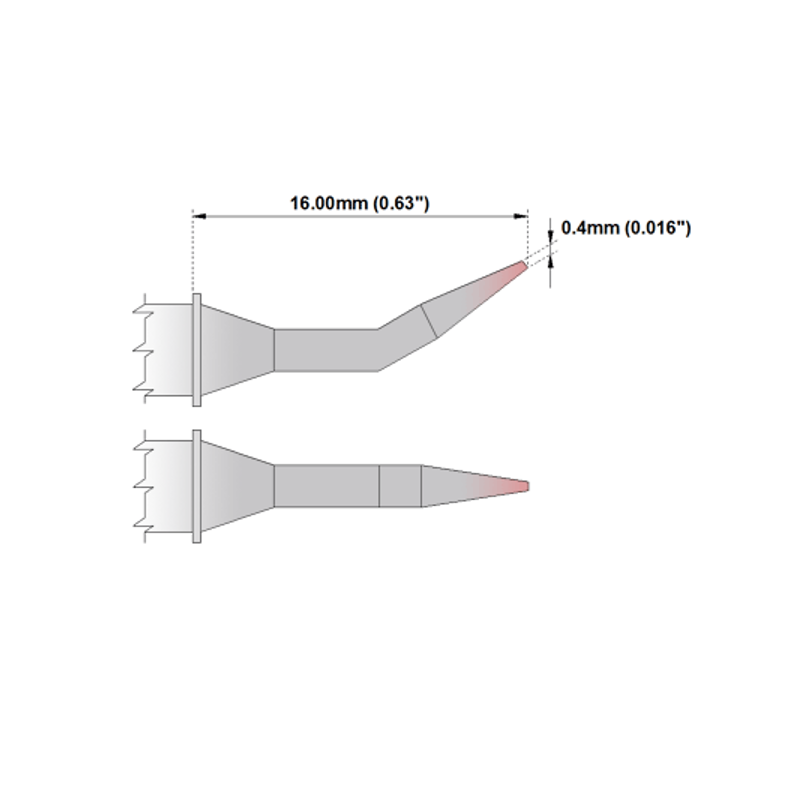

M8B325 Thermaltronics soldering tip bent sharp 30° 0.4mm
M8B325 Thermaltronics soldering tip can be used with the following soldering systems:
- Thermaltronics TMT-9000S-1
- Thermaltronics TMT-9000S-2
- Metcal® MX-500
- Metcal® MX-5000
- Metcal® MX-5200
M8B325 uses Curie point technology to ensure that the temperature is guaranteed to be consistent. Calibration is therefore not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different because it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
The M8B325 is to be used in conjunction with the Thermaltronics SHP-1 handpiece.
Features:
- Uses Curie point technology
- Quick and safe to use
- Calibration of the soldering iron is not required
- Colour coded band for easy recognition of temperature range
- Temperature range for 800 Series tips is 420ºC- 475ºC
- For use with Thermaltronics TMT-9000S-1 and Thermaltronics TMT-9000S-2 soldering systems
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200 soldering systems
- Not a Metcal copy tip, but equivalent product to Metcal® STTC-840
- Other temperature ranges available, please see M6B325 and M7B325
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
AMS are the UK distributor for the full range of Thermaltronics soldering and rework equipment. Please contact us for further information and advice, or to arrange a demo visit.
