Description

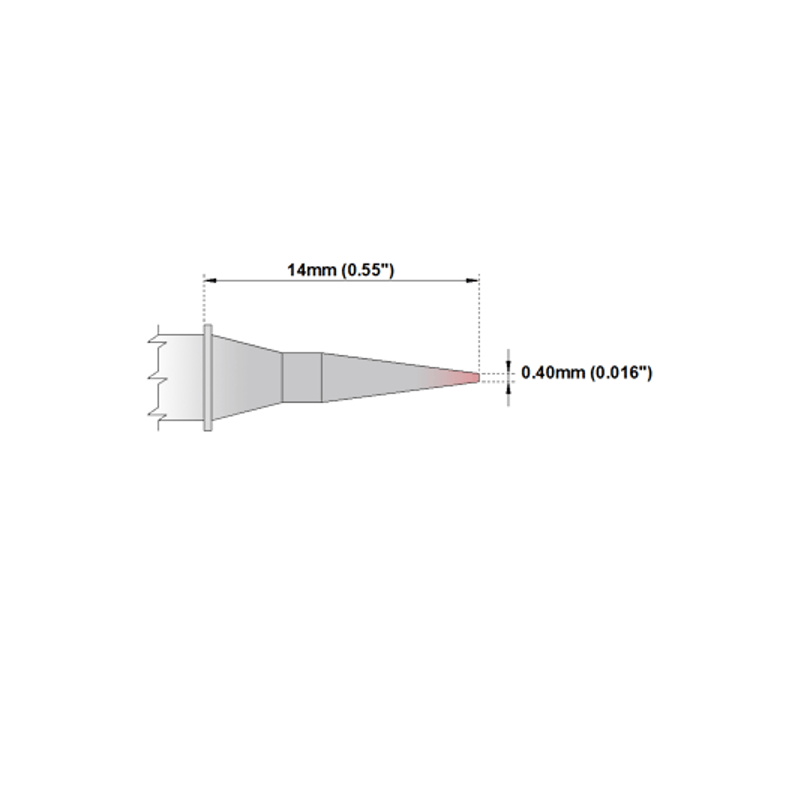

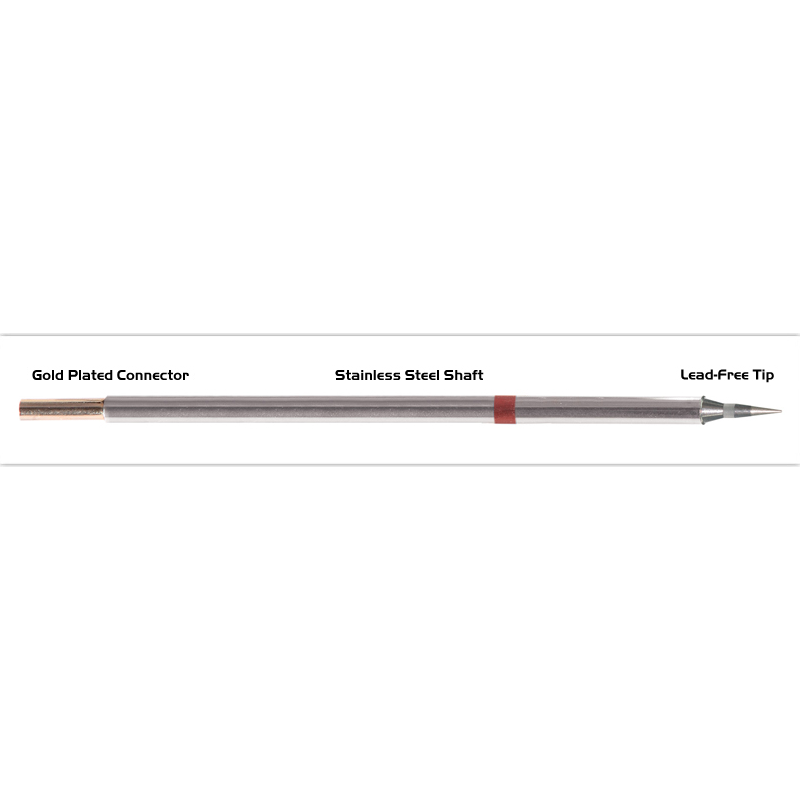

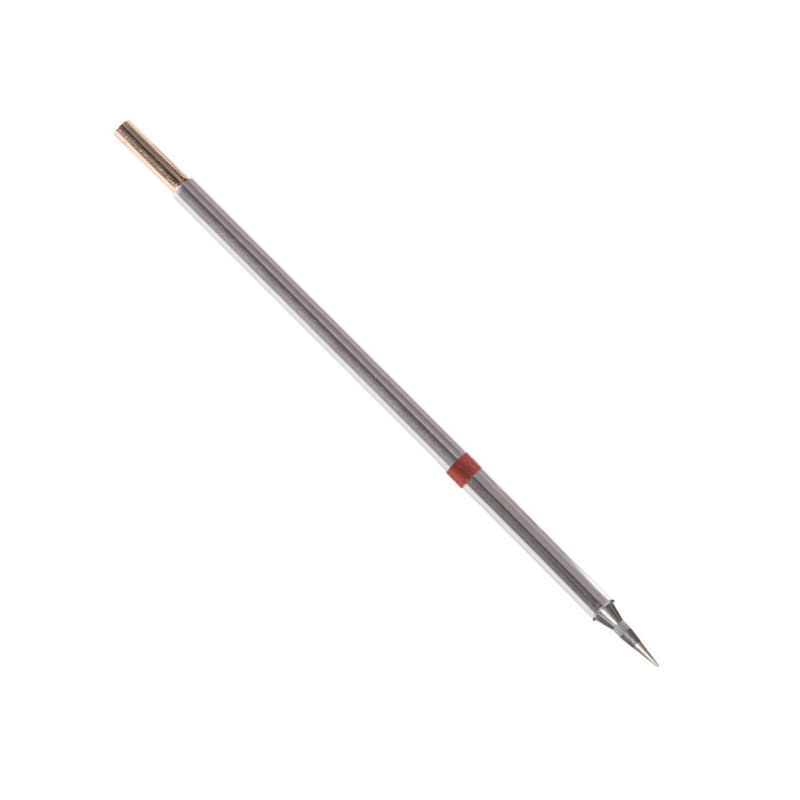

M8C300 Thermaltronics soldering tip Conical 0.4mm STTC-845
M8C300 Thermaltronics soldering tip Conical 0.4mm STTC-845 (0.016″) can be used with the following solder systems:
- Thermaltronics TMT-9000S-1
- Thermaltronics TMT9000S-2
- Metcal® MX-500
- Metcal® MX-5000
- Metcal® MX-5200
M8C300 Thermaltronics soldering tip Conical 0.4mm STTC-845 uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
The M8C300 is to be used in conjunction with the Thermaltronics SHP-1 handpiece.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 800 Series tips is 420ºC- 475ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Not a Metcal copy tip, but equivalent product to Metcal® STTC-845
- Other temperature ranges available, please see M6C300 and M7C300
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
AMS are the UK distributor for the full range of Thermaltronics soldering and rework equipment. Please contact us for further information and advice, or to arrange a demo visit.
