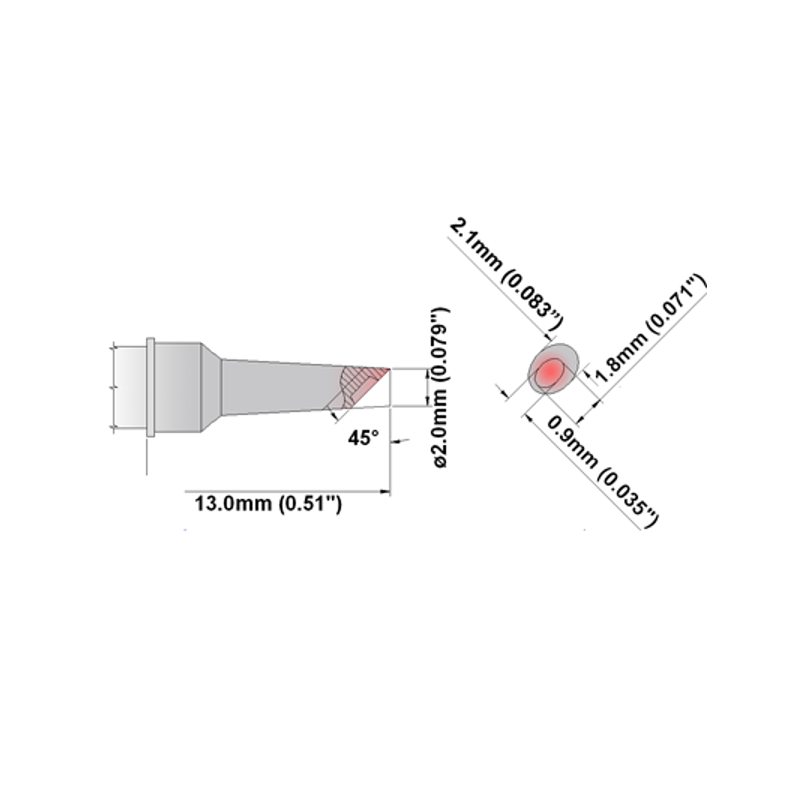

M8WV020 Thermaltronics soldering tip hoof Dent 45°
M8WV020 Thermaltronics soldering tip hoof Dent 45° 2.00mm can be used with the Thermaltronics TMT-9000S-1, Thermaltronics TMT9000S-2 Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200 soldering systems.
The M8WV020 Thermaltronics soldering tip hoof Dent 45° 2.00mm uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. The tips are colour banded for easy recognition. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 800 Series tips is 420ºC- 475ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2 soldering systems
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Not a Metcal copy tip
- Other temperature ranges available, please see M6WV020 and M7WV020
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
We supply the full range of Thermaltronics soldering irons, tips and accessories, please contact us fore more information
