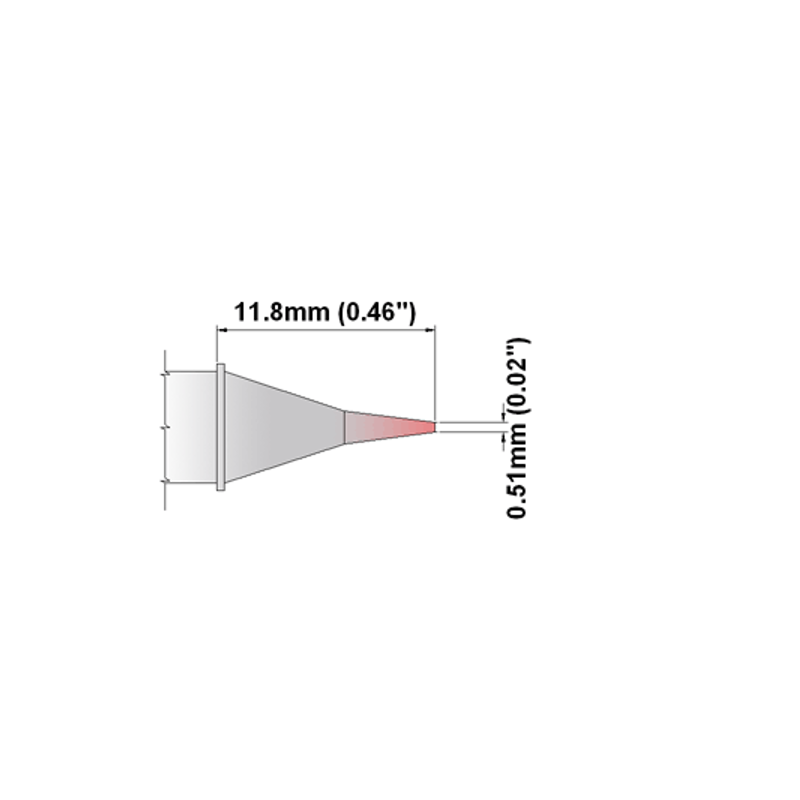

S75CS005 Thermaltronics Soldering Tip Conical Sharp 0.5mm SSC-722A
S75CS005 Thermaltronics Soldering Tip Conical Sharp 0.5mm SSC-722A (0.02″) can be used with the following soldering systems:
- Thermaltronics TMT-2000PS
- Metcal® SP200
- Metcal® PS900
- Metcal® MFR-PS1100
- MFR-PS2200
S75CS005 uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Uses Curie point technology
- Temperature range for the 700 series tips is 350-398 ºC
- Quick and safe to use
- No calibration required
- For use with Thermaltronics TMT-2000PS
- Compatible with Metcal® MFR-PS1100, Metcal® MFR-PS2200
- Compatible with Metcal® SP200
- Direct equivalent to SSC-722A
- Other temperature ranges available, please see S80CS005 and S60CS005
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
