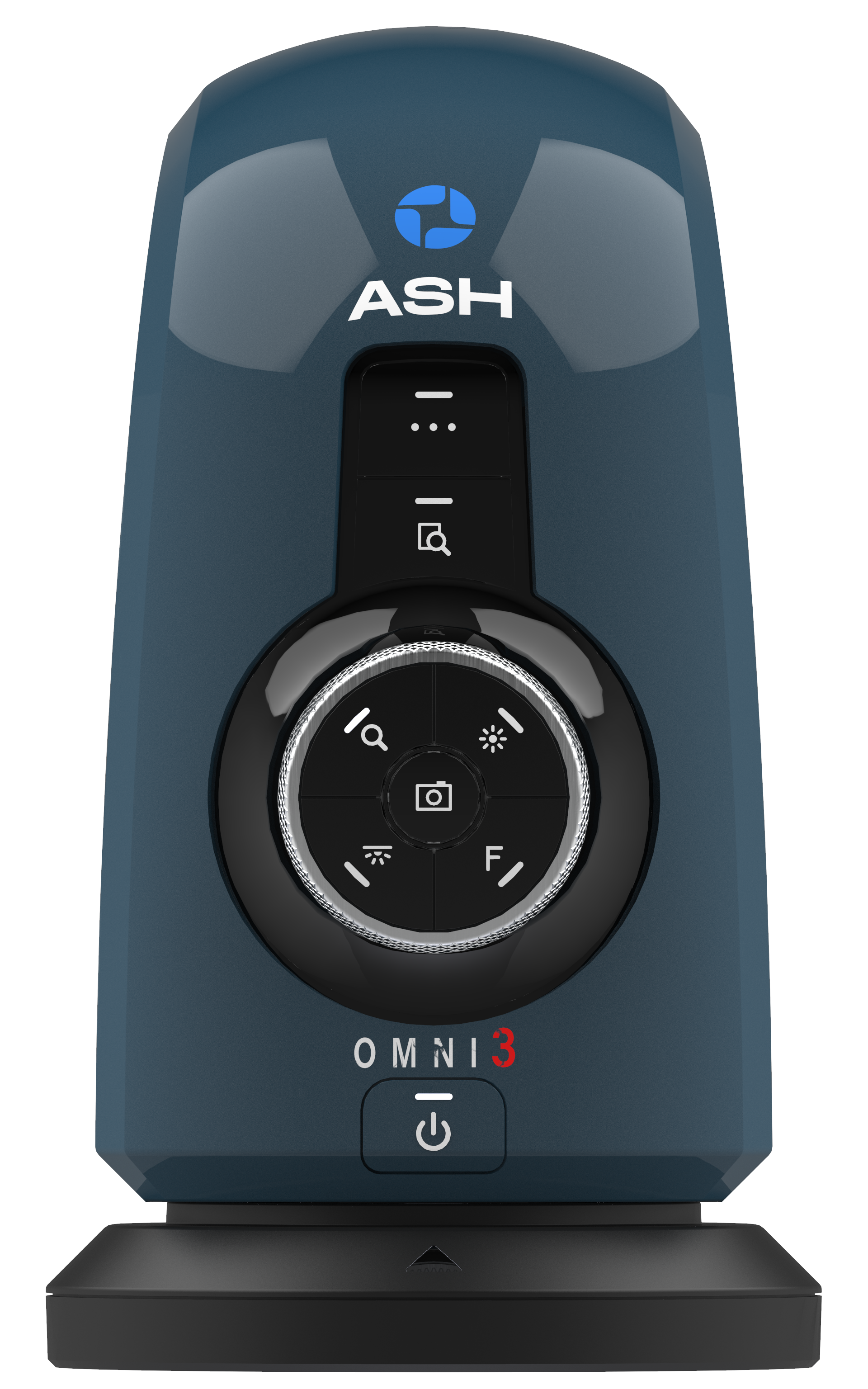

OMNI 3 Digital Microscope and Measurement System
The Omni 3 Digital Microscope and Measurement System has been engineered to deliver one of the most advanced and intuitive digital microscope
experiences.
The Powerful and embedded software can process complex imaging
tasks without the use of a PC. The OMNI 3 can also be custom designed to deliver maximum results.
You also can tailor the Omni 3 by choosing apps that meet your specific requirements. Our apps range from advanced measurement tools to help meet critical manufacturing tolerances to comparison tools that ensure the highest production quality.
Apps:

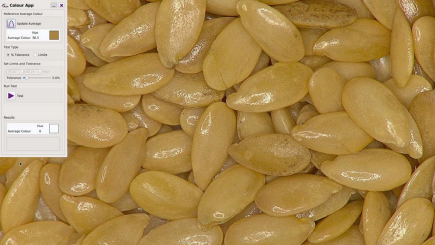

- Colour Analysis App: Advanced algorithms automatically calculate the colour value of any sample and identify contaminants or foreign objects within your sample. Eliminate human error and improve yield by up to 50%. Reports can also be generated for easy documentation and traceability.
- Object Counting App: Automatically identify and count the number of objects within your region of interest. Increase efficiency by 70% whilst eliminating human error.
- Z Height Measurement App: You can now measure in the Z axis, in addition to the X and Y axes, bringing the Omni 3 capability to a whole new dimension.
- 2D Measurement & Graticules: Intuitive on screen full 2D patented measurement application. Point to point, diameter, angle, adjustable X-Y grid, shapes and annotation features to accommodate a multitude of samples specifications. Graticule creation allows samples to be analysed against on-screen digital templates with set tolerance limits. It also enables quick go/no-go defect analysis.
- Image Stitching and stacking: Stitch multiple images together, increasing your field of view at high magnification. Perform full measurements on the full image. Document and annotate for traceability.
- Stacking: View a sample with different layers all in focus at the same time. Omni 3 automatically captures several images from 2 to 12 at different focal depths and creates an image based on the sharpest regions from each of these separate captures.
- Image Comparator Side by Side: Visually compare your live sample image to a stored master image in the form of a split screen and add notes through annotation and save the comparison photo for documentation and traceability.
- Image Comparator Overlay: Create an image overlay to identify defects by overlaying and flashing the live sample against the stored master image. This enables rapid identification of differences between gold sample and test samples.
Benefits and Features:
- Auto-focus: Quickly and seamlessly inspect your part without having to adjust the manual focus.
- Use Manual Rocker Focus™ to accurately adjust the focus level to your region of interest.
- The new Advanced Camera Settings gives the user more power and control to enhance the image for a wide range of inspection and measurement capabilities.
- Crystal clear imaging: Experience unrivalled Full HD video imaging never seen before in an ASH system. AshCam+™ enables vibrant image quality which ensures a true representation of your sample.
- Zero Video Latency: There is zero delay between movement under Omni 3 and what you see on the screen, which results in a more efficient inspection process. Omni 3 is also 3x times faster than our previous systems.
- Improved depth of field: The Omni 3 has improved depth of field. This makes inspection much faster and more efficient without the need for changing focus positions or adjusting camera height.
