Description

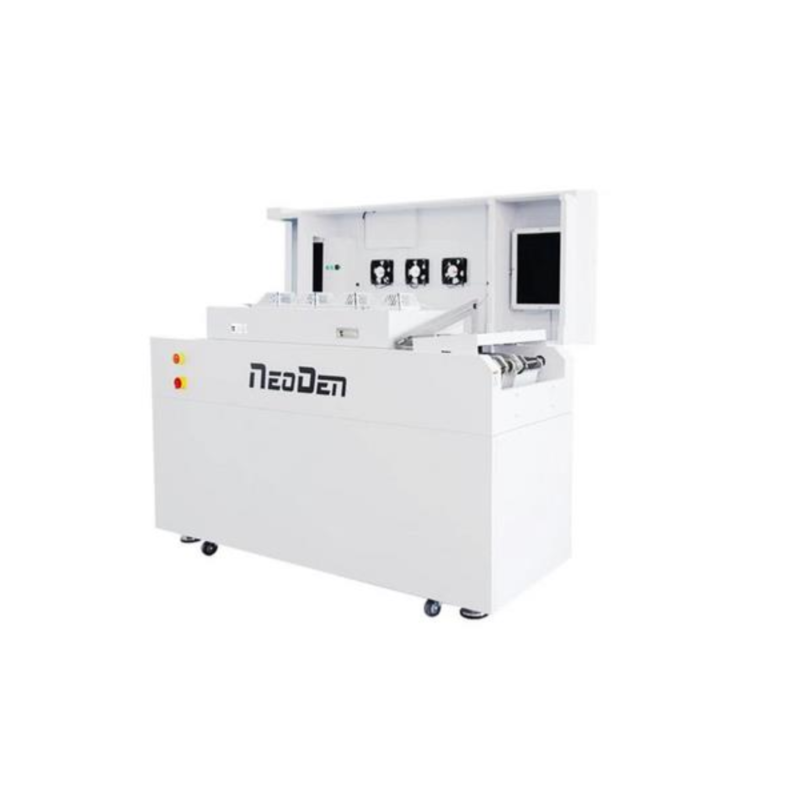

NeoDen IN8C Reflow Soldering Machine
The NeoDen IN8C is a new environmentally friendly, intelligent and automatic orbital reflow soldering machine. This reflow solder machine adopts the exclusive patented design of “even temperature heating plate”. The NeoDen IN8C reflow soldering machine has 8 temperature zones, unique heating module design, intelligent control system and a built-in welding smoke filtering system.
Features
- Built-in welding fume filtration system effectively removes harmful gasses
- Hot air convection
- Excellent welding performance.
- The heat insulation protection design which means the shell temperature can be effectively controlled.
- Intelligent control, high-sensitivity temperature sensor and effective temperature stabilization.
- 8 Heating zones: uniform temperature and accurate high temperature control
- Cooling zone: Independent circulating air design- Isolates the influence of the external environment
- Energy saving & Eco-friendly: Welding smoke filtration, low power and supply requirements
- Operation panel: Hidden screen design which is convenient for transportation
- Intelligent control system: Custom developed intelligent control system
- The PCB soldering temperature curve can also be displayed based on real-time measurement.
Specification
| Product name | NeoDen IN8C Reflow Soldering Machine |
| Model | NeoDen IN8C |
| Heating Zone Quantity | Upper4 / Down4 |
| Cooling Fan | Upper4 |
| Conveyor Speed | 50～600 mm/min |
| Temperature Range | Room temperature～300℃ |
| Max soldering height | Upper 30mm, Down 22mm |
| Max Soldering Width | 305mm (PCB Width) |
| Electricity Supply | AC 220v/single phase |
| Machine Size | L1675mm×W650mm×H11650mm (Conveyor height 900mm +/- 20mm) |
| Heat-up Time | 20-30 min |
| Net Weight | 200Kgs |
If you would like more information about the IN8C Reflow Soldering Machine, please send us an email at sales@ams-electronics.co.uk or give us a call on +44 1260 270950 and one of our advisors will be happy to help you. Available in the UK and Ireland.
