NeoDen IN6 Smart Reflow Soldering Oven
The NeoDen IN6 Smart Reflow Soldering Oven is a newly designed and manufactured reflow oven by NeoDen. Offering 6 independently controllable heating zones plus an air cooling system the NeoDen IN6 offers unparalleled value for money. The compact design and small footprint means that this SMD reflow oven can be used in any room where a standard 3 pin plug supply is available. Requiring no external fume extraction, the IN6 has in-built fume extraction filters,. Where external extraction is required it is also supplied with collars to allow the solder paste processing oven to be connected to such a system.
A simple to use control screen allows programming of the conveyor speed as in addition to setting the temperature parameters for each of the 6 heating zones ensuring the perfect reflow soldering profile is achieved. The profile can be checked with the use of the built-in profiling thermocouple. When taped to the surface of a PCB, the thermocouple can give real-time feedback on the surface temperature of the PCB and also records the full profile. The oven has a green strip light at the entry point that is illuminated once the oven reaches processing temperature meaning that the oven can be switched on and left unattended until ready.
The NeoDen IN6 Smart Reflow Soldering Oven was developed and released by NeoDen Tech for Europe and is aimed at prototype manufacturing, low volume/start up manufacturing and R&D . By providing features only found on expensive SMT ovens to customers venturing into SMT assembly, the IN6 offers unrivalled value.
Our Smart reflow ovens are available from UK stock on a next day delivery service. Please call us to discuss your requirement and speak to one of our engineers who can answer any questions and guide you through the process.
Technological Features
- Full heat convection, excellent soldering performance
- Built in profiler function
- Single phase power
- Small footprint that can fit through a standard door.
- 16 working files can be stored, flexibly convert from Celsius to Fahrenheit, easy to understand
- Smart control with high sensitivity temperature sensor, the temperature can be stabilized within + 0.2℃.
- Built-in welding smoke filtering system, elegant appearance and eco-friendly.
- High-performance aluminium alloy heating plate instead of the heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is less than 2℃.
- Heat insulation protection design, the casing temperature can be controlled within 40℃.
- Equipped with an ESD tray, easy to collect PCB after reflowing, convenient for the prototype.
- 6 temperature zones, light and compact.
- PCB soldering temperature curve can be displayed based on real-time measurement
- Approved by TUV NORD CE, qualified and reliable.
- 12 month warranty

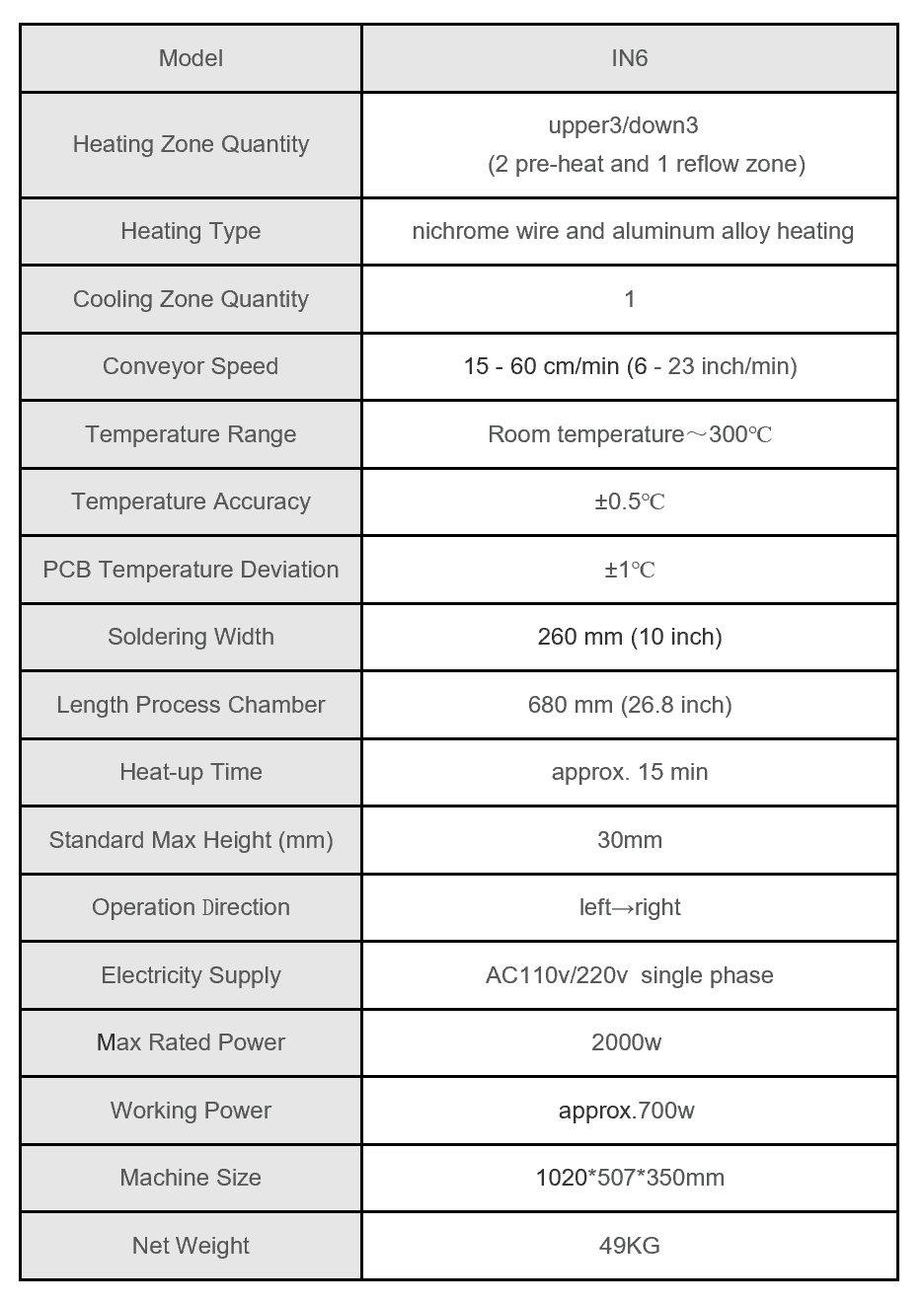

Specification Highlights of the NeoDen IN6: –
Neoden IP6 Reflow Specification
