Panasonic RL132 High Speed Radial Lead Component Insertion Machine
Introducing high speed insertion of radial components for highly efficient, high quality production – the Panasonic RL132 high speed radial lead component insertion machine.
Experience unparalleled efficiency and quality in production with our high-speed insertion solution, boasting an impressive insertion speed of just 0.14 seconds per component. Our radial insertion machine utilizes the lead wire V-cut method to achieve this remarkable speed, ensuring rapid and precise component placement. With the flexibility to select from 5 different pitches, customizable to your specific requirements, our solution offers versatility and adaptability to diverse production needs.

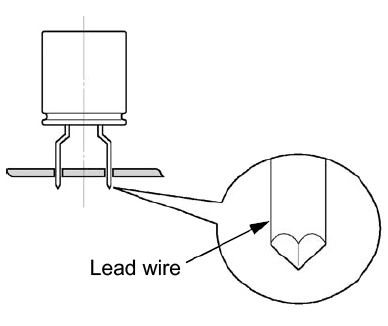

High productivity: V-cut method stabilizes insertion rate
High speed and high reliability with the lead wire V-cut method
Highly efficient production: Various operation modes are realized by the 2-part component supply system
Equipped with 4 modes (replacement, priority replacement, preparation, and connection), enabling pre-setup of components and operation of equipment during parts exchange (80 stations specification).
Operability: The liquid crystal touch screen is employed and easy operation can be provided by the operation guidance indication.
Key Features:
- Realised high speed insertion: Our radial insertion machine utilizes the lead wire V-cut method to achieve high-speed insertion, with an impressive rate of 0.14 seconds per component, ensuring rapid and efficient production processes.
- Customisable pitch selection: Choose from 5 different pitches to tailor the insertion process to your specific requirements, allowing for flexibility and versatility in production setup.
- Highly efficient production: Benefit from a fixed component feeder unit and an out-of-component detection feature, enabling replenishment of components beforehand for long-term non-stop operation. The 80-station specification features a divided components supply system, enhancing operation rates by allowing equipment operation during pre-setup and components replacement based on production format.
- Auto recovery function: Our solution is equipped with an auto-recovery function capable of handling loading errors automatically, ensuring uninterrupted production for extended periods.
Enlargement Function Option:
- Large size PCB support: Opt for the large-size PCB support option, allowing for hole recognition and insertion for PCBs up to a maximum size of 650 mm x 381 mm.
- 2 PCB transfer option: Reduce PCB loading time by half and increase productivity with the 2 PCB transfer option, optimizing production efficiency.
With our high-speed insertion solution, you can achieve highly efficient, high-quality production processes, driving productivity gains and ensuring competitive advantage in today’s fast-paced manufacturing environment.
