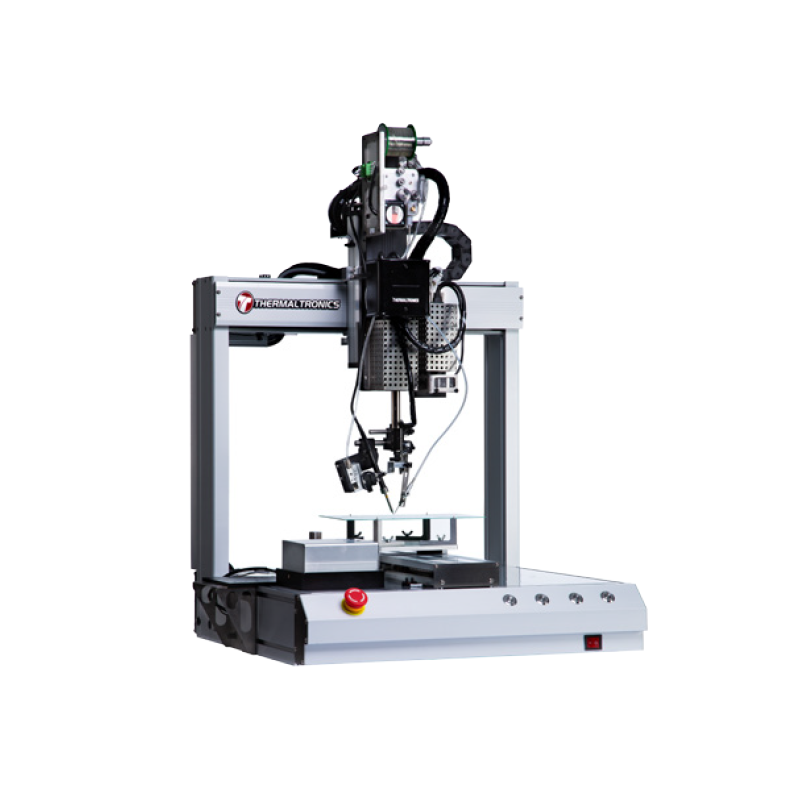

TMT-R8000S Thermaltronics soldering robot desktop
The TMT-R8000S Thermaltronics soldering robot is an affordable desktop system incorporating innovative design concepts and precision components to ensure accuracy. The combination of high precision hardware and intelligent software ensures precision soldering and low operator training costs. Unlike typical Cartesian robots the Thermaltronics TMT-R8000S soldering robot, is equipped with full vision (eyes) to verify the procedure being undertaken and does not simply follow a pre-determined program.
The soldering robot has an observation mode, a verification mode and decision making capabilities (brain). This capability of collecting and utilising data for production processing is one of the most important factors necessary to meet the requirements of Industry 4.0 standards. Through the use of servo motors and precision ballscrews, the Thermaltronics Robot system is able to accurately meet the requirements of high speed operation, repeatability and durability. Application programming is made simple by using full image-merging and mapping techniques. Dynamic laser height measurement/adaptive control, ensures precision soldering repeatability. A full vision mapping and matching system, provides for intelligent decision making during procedural operations.
The TMT-R8000S robot uses iron tips with CHT (Curie Heat Technology) – it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material. Tip cartridges can be exchanged very quickly resulting in very little downtime.
Key features:
- Six Axis Soldering Robot
- Designed in USA and Austrialia
- Entry level robotic soldering perfect for small prototyping
- Intelligently compensates for PCBA variance
- Image Recognition & Mapping System
- Laser Height Measurement
- Uses Curie Heat Technology for precise temperature control
- ESD safe and lead free
- CE approved
- Fully supported by UK technical engineers
Specification:
| Input Line Voltage: | 100-240 VAC | |
| Servo Motor Axis: | 6 Axis | |
| Camera View | 400mm x 300mm | |
| PCBA Max Size | 300mm x 300mm | |
| Soldering Region Max Size | 300mm x 300mm | |
| Dynamic Range of Shaft: | X-Axis | 400mm |
| Y-Axis | 300mm | |
| Z1, Z2 Axis | 100mm, 20mm | |
| Rotation Axis | 330° | |
| Shaft Speed: | X, Y, Z Axis | 0.1mm – 300mm/sec |
| Rotation Axis | 0.1 – 450°/sec | |
| Positioning Repeatability: | X, Y, Z Axis | ±0.02mm |
| Rotation Axis | ±0.03° | |
| Camera Resolution: | 1600 x 1200 | |
| Air Pressure: | Max. 6 Bar / 87 PSI | |
| Solder Wire Diameter Range: | 0.3mm – 1.6mm | |
| Controller: | Industrial Computer w/Proprietary Software | |
| Operating System: | Windows 10 Professional | |
| Soldering System: | 120 watts (40 watts RF output) | |
| Curie Heat Technology: | 250°C – 500°C (382°F – 932°F) | |
| Power Consumption: | 1 KVA | |
| Size (W x H x D): | 840mm (H) x 690mm (D) x 660mm (W) | |
| Weight: | 100 KG (220 LBS) | |
We are the proud Thermaltonics UK distributors. For further information, or to request a quotation, please do not hesitate to contact us.
