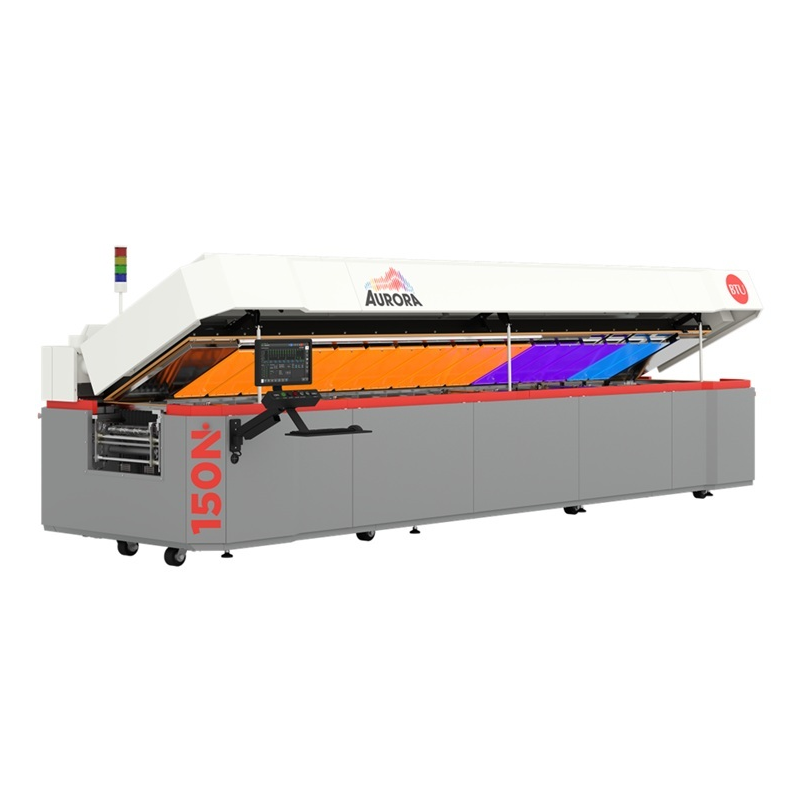

BTU Aurora Reflow Oven – Advanced SMT Reflow Soldering Equipment

Precision Reflow Soldering for Modern Electronics Manufacturing

The BTU Aurora Reflow Oven is an advanced thermal processing solution designed to meet the demands of modern surface mount technology (SMT) production. Developed for manufacturers requiring accurate temperature control, flexible production capabilities and efficient operation, the Aurora platform delivers the performance needed for complex PCB assemblies and high-volume electronics manufacturing.

Combining BTU International’s established thermal processing expertise with intelligent control software, advanced flux management and configurable heating and cooling zones, the Aurora offers a versatile solution for manufacturers looking to improve soldering consistency, streamline production and manage operating costs.

Whether processing high-density printed circuit boards, larger assemblies or thermally demanding components, the BTU Aurora provides the control and flexibility required for reliable reflow soldering.

Key Features and Benefits of the BTU Aurora Reflow Oven

Exceptional Thermal Uniformity and Process Control

Maintaining a consistent temperature profile is essential for achieving reliable solder joints and reducing manufacturing defects.

The BTU Aurora uses advanced closed-loop convection technology to provide uniform heat distribution throughout the reflow process. Its controlled airflow and precise temperature regulation help manufacturers achieve repeatable soldering results across different PCB designs and production batches.

Key advantages include:

• Consistent thermal performance across PCB assemblies.
• Accurate temperature control throughout the soldering cycle.
• Repeatable reflow profiles for improved process stability.
• Suitable for complex, high-density and thermally demanding assemblies.
• Reliable processing across multiple production lines.

Flexible Heating and Cooling Configurations

One of the Aurora’s most valuable features is its adaptable thermal architecture.

Unlike conventional reflow ovens with fixed heating and cooling layouts, the Aurora allows its thermal zones to be configured at the factory to suit specific production requirements.

This flexibility makes the platform particularly suitable for manufacturers processing a wide range of PCB assemblies, from smaller electronic products to large, high-mass circuit boards.

The configurable design supports:

• Optimised heating and cooling profiles.
• Processing of heavy or complex PCB assemblies.
• Applications requiring controlled cooling rates.
• High-throughput SMT production.
• Greater flexibility when specifying new manufacturing equipment.

Integrated Aqua Scrub™ Flux Management

Flux residue can increase maintenance requirements and affect the cleanliness of a reflow oven’s internal process chamber.

The BTU Aurora incorporates Aqua Scrub™, an automated, water-based flux management system designed to remove flux contaminants from the oven atmosphere.

By controlling flux build-up during production, Aqua Scrub helps maintain a cleaner processing environment and reduces the need for frequent manual cleaning.

Benefits include reduced maintenance intervention, improved equipment availability and more consistent operating conditions.

Energy-Efficient Reflow Soldering

Energy consumption is an important consideration for electronics manufacturers seeking to reduce production costs.

The Aurora incorporates intelligent energy management technologies designed to optimise electrical power and process gas consumption.

Smart Power helps control peak electrical demand, while Energy Pilot adjusts energy usage during production gaps and supports a return to normal operating conditions when manufacturing resumes.

These features can help manufacturers:

• Reduce unnecessary energy consumption.
• Manage peak electrical demand.
• Lower process gas usage during production interruptions.
• Improve overall operating efficiency.
• Support longer-term sustainability objectives.

Advanced WINCON™ Oven Control Software

The Aurora features BTU’s WINCON 8 control platform, providing operators and process engineers with an intuitive interface for managing thermal processing conditions.

WINCON offers comprehensive process monitoring, equipment diagnostics and production connectivity to support increasingly automated manufacturing environments.

Capabilities include:

• Advanced oven temperature and process control.
• Real-time operating information and diagnostics.
• Recipe management and process monitoring.
• Production traceability capabilities.
• Manufacturing Execution System (MES) integration.
• Connectivity for Industry 4.0 manufacturing environments.

This combination of process visibility and intelligent control helps manufacturers manage production quality while simplifying day-to-day oven operation.

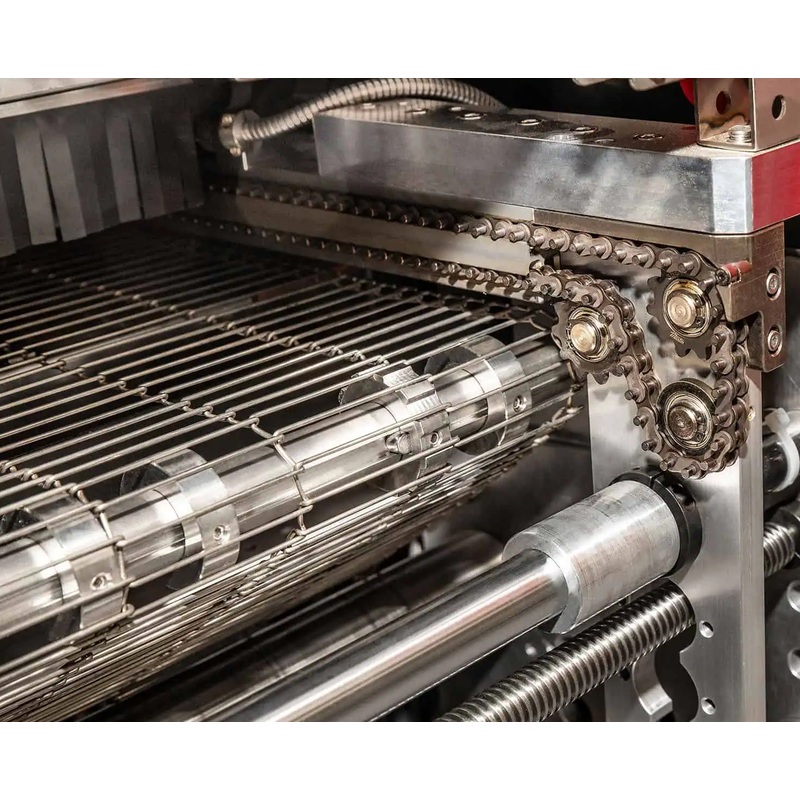

Versatile PCB Handling and Conveyor Options

The BTU Aurora offers flexible conveyor arrangements to accommodate different PCB sizes, production volumes and manufacturing requirements.

Available configurations include dual-lane, dual-speed operation, multiple adjustable rails and support for PCB widths up to 620 mm.

These options make the Aurora suitable for manufacturers processing different product types or seeking to maximise production capacity within their SMT assembly lines.

Designed for Easier Maintenance

Equipment accessibility is an important factor in reducing production downtime.

The Aurora has been engineered with improved access to internal process areas and serviceable components, making routine inspection, cleaning and maintenance more straightforward.

Combined with integrated flux management, this design helps reduce maintenance demands and supports greater equipment availability.

Applications for the BTU Aurora Reflow Oven

The Aurora is suitable for a broad range of electronics manufacturing and thermal processing applications, including:

• SMT PCB assembly: Reliable reflow soldering for surface-mounted electronic components.
• High-volume electronics manufacturing: Consistent processing for automated production environments.
• Automotive electronics: Controlled soldering processes for demanding electronic assemblies.
• Power electronics: Thermal processing of larger and higher-mass circuit boards.
• Advanced semiconductor packaging: Precise thermal control for complex electronic packaging applications.
• High-mix contract manufacturing: Flexible processing of different PCB designs and product requirements.
• Industrial and telecommunications electronics: Repeatable reflow soldering for complex electronic products.

Why Choose the BTU Aurora for Your SMT Production Line?

Selecting the right reflow oven involves more than simply matching equipment capacity to production volume.

Temperature uniformity, conveyor flexibility, energy consumption, maintenance accessibility and process control all influence long-term manufacturing performance.

The BTU Aurora brings these considerations together in a configurable platform designed for modern electronics production.

For manufacturers investing in new SMT assembly equipment or upgrading existing reflow soldering processes, the Aurora provides a combination of advanced thermal technology, operational efficiency and production flexibility.

BTU Aurora Reflow Oven – Technical Specifications

The Aurora range is available in several configurations to accommodate different throughput requirements and thermal processing applications.

Specifications vary by model and configuration. Please contact us to discuss the most suitable system for your production requirements.

Looking to improve your SMT soldering process or invest in advanced reflow oven technology?

Contact us to discuss the BTU Aurora Reflow Oven and your electronics manufacturing requirements.

Whether you are planning a new SMT production line, reviewing existing equipment or exploring more energy-efficient reflow soldering solutions, our team can help you explore the available options.
