Description

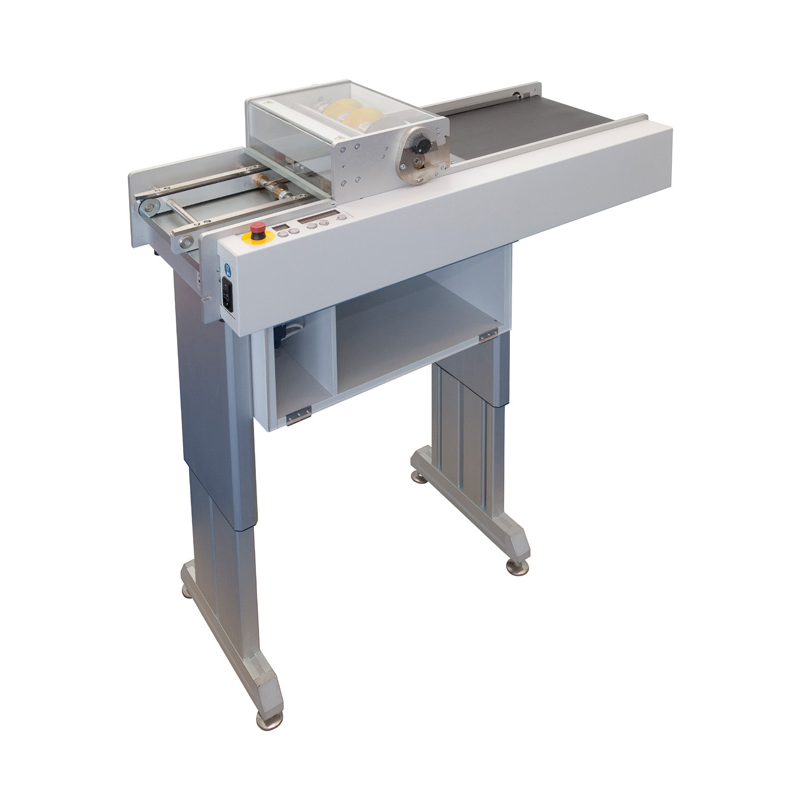

Cab Maestro 5L In-Line PCB Separator
The Cab MAESTRO 5L (8934520) with base frame is used most economically whenever large numbers of pre-scored PCBs need to be separated. The well-arranged control panel ensures easy in-line operation. The Maestro 5L is easily adjustable in height when fitted with the optional base frame for optimal processing of each PCB type. PCB panels with maximum width of 310 mm can be separated by up to 11 pairs of circular blades simultaneously. Configuration of the blades, cover and the guide is adjusted to your individual PCB during the design stage at CAB. Sensors are used to monitor the separating process to ensure the PCBs are processed to a consistently high standard. The PCBs are placed either by hand or they feed automatically by a loading station. The machine can also be installed in an assembling line and is supplied with the industry standard SMEMA interface to ensure complete compatibility with the rest of the line.
Features
- High Volume capability
- In line or Batch operation
- Custom made tooling
- Ti coated blades for long life
New: every machine is automatically prepared for dust extraction and with cleaning brushes for rear-end conveyor.
PCB panels wider than 310 mm machine on request..
The Cab Maestro 5L is a standard machine that uses a custom made tooling set, should you require further information or pricing please contact us.
