Description

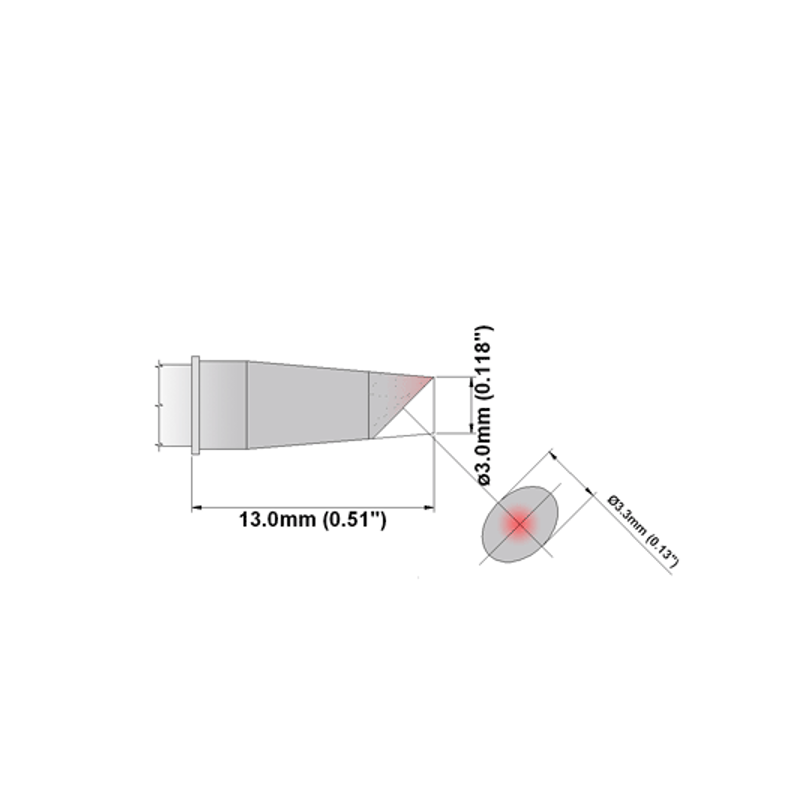

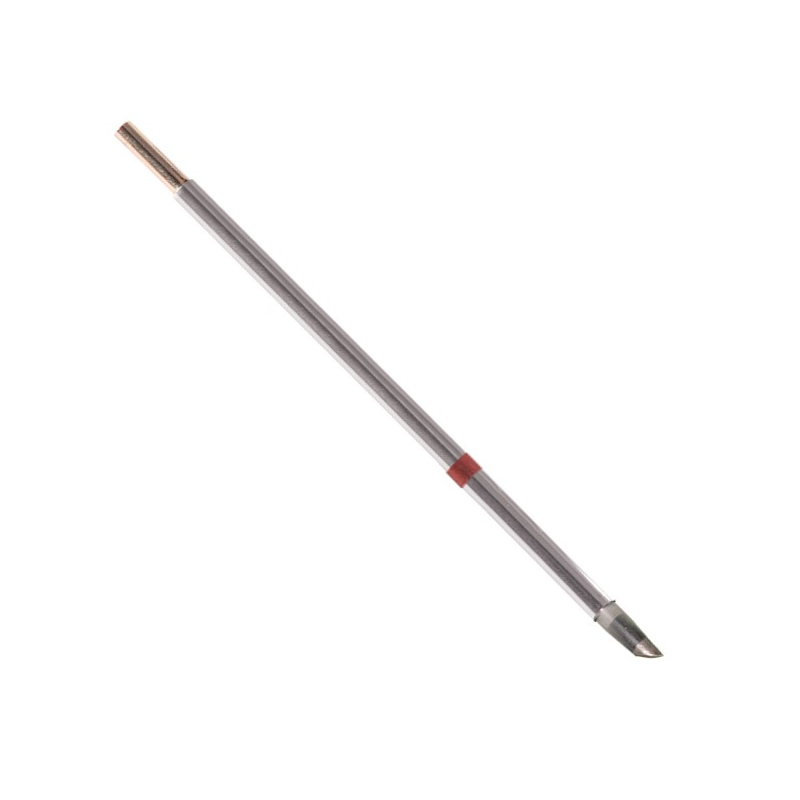

M8BV030 Thermaltronics soldering tip Bevel 45° 3.00mm
M8BV030 Thermaltronics soldering tip Bevel 45° 3.00mm (0.12″) can be used with the following soldering irons:
- Thermaltronics TMT-9000S-1
- Thermaltronics TMT9000S-2
- Metcal® MX-500
- Metcal® MX-5000
- Metcal® MX-5200
M8BV030 Thermaltronics soldering tip Bevel 45° 3.00mm uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
The M8BV030 is to be used in conjunction with the Thermaltronics SHP-1 handpiece.
Features:
- Uses Curie point technology
- Quick and safe to use
- No calibration required
- Colour coded band for easy recognition
- Temperature range for 800 Series tips is 420ºC- 475ºC
- For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2 soldering systems
- Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
- Not a Metcal copy tip
- Other temperature ranges available, please see M6BV030 and M7BV030
- All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
AMS are the UK distributor for the full range of Thermaltronics soldering and rework equipment. Please contact us for further information and advice, or to arrange a demo visit.
