Description

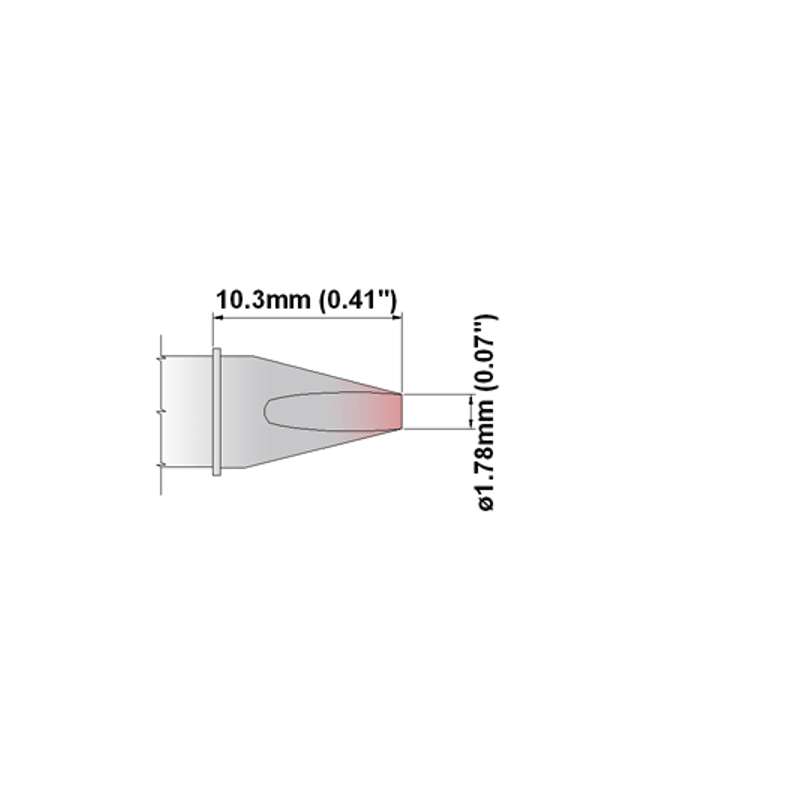

S75CH018 Thermaltronics Soldering Tip Chisel 30° 1.78mm SSC-737A
S75CH018 Thermaltronics Soldering Tip SSC-737A can be used with the following soldering systems:
- Thermaltronics TMT-2000PS
- The Metcal® SP200, Metcal® PS900 and Metcal® MFR-PS1100
- MFR-PS2200
S75CH018 uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.
Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Features:
- Temperature range for the 600 series tips is 350-398ºC
- Quick and safe to use
- No calibration required
- For use with Thermaltronics TMT-2000PS
- Compatible with Metcal® MFR-PS1100, Metcal® MFR-PS2200 and with Metcal® SP200
- Direct equivalent to SSC-737A
- Thermaltronics products meet ISO 9000 and ISO 14000 standards
- Thermaltonics products always meet either GS, CE or NRTL safety requirements
