Description

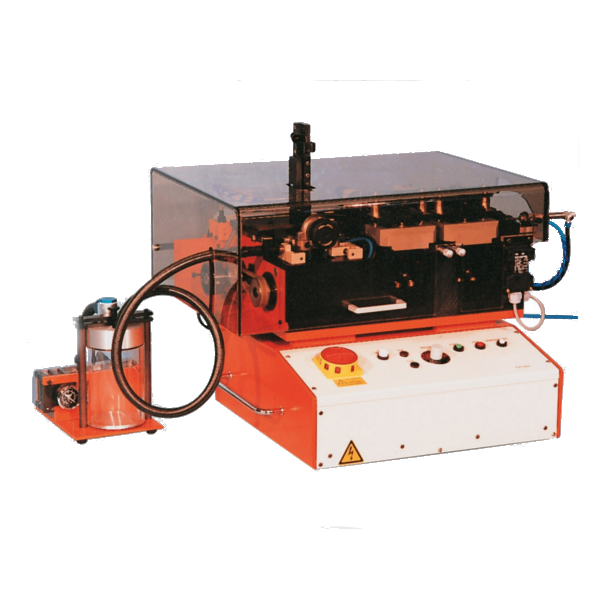

Burst & Zick CO69 Power Transistor Preforming Device

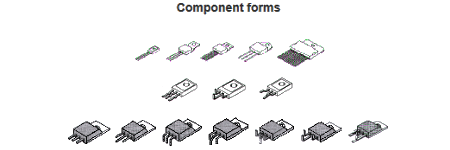

The Burst & Zick CO69 is designed to cut and form components with 3 up to 23 leads for vertical or horizontal mounting and it offers and tube to tube feeding. The feed magazines and die sets are modular in design to allow quick set up changes. All cutting and forming parameters are manufactured to customer specification. The Burst & Zick CO69 is the industry leading high volume power transistor forming machine and is produced to the exacting German engineering tolerances expected. Burst & Zick are a customer focussed company and will work with its customers to produce new tooling to enable component forming of any device, please contact us if you have a component forming issue.
Features
- Incredible forming accuracy
- Robust motor drive
- High throughput
- Quick tool change
- Tube to tube processing
Specification
| dimension | 600 x 600 x 450 mm |
| – weight | approx. 40 kg |
| – electrical | 230 V / 50 Hz / 200 W |
| – compressed air | 6 bar |
| – model | tool double-station (bending up and down at the same time) |
| – pitch | 2,5 mm and others |
| – lead Ø | any |
| – operation | engine (continuously variable) |
| – components | sticks or loose |
| – production rate | 3.500 pcs/hr |
Please contact us should you require any further information relating to component forming.
