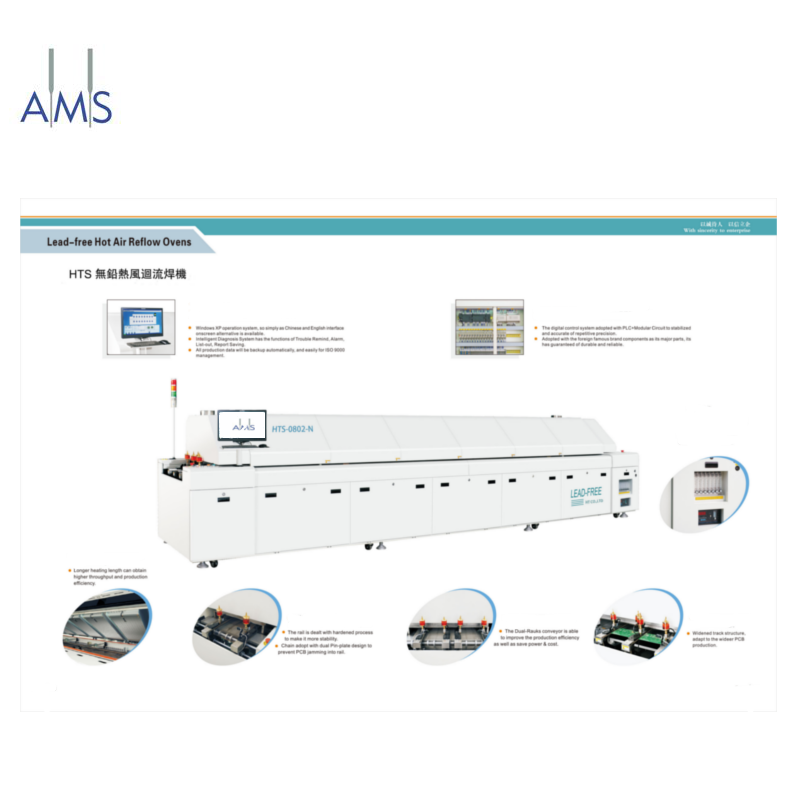

HTS1202 12 Zone Lead Free Reflow Oven (Hot Air / Nitrogen)
The HTS1202 12 Zone Lead Free Reflow Oven (Hot Air / Nitrogen HTS1202-N ) is produced by HT and exclusively distributed in the UK by AMS Ltd. Offering 12 heated zones (12 top & 12 bottom side) and 2 chilled air cooling zones the HTS1202 is capable of handling all high volume manufacturing requirements whilst still achieving sector leading values of ΔT across the pcb. Backed by our 2 years warranty and our famous after sales service the HTS1202 12 Zone Lead Free Reflow Oven is the safe choice for customer requiring no compromise quality, reliability and exceptional value for money. We have a full range of ovens ranging from bench top to 12 zone nitrogen versions, please contact us to discuss your individual requirement.
Features
- 12 Independent Heated Zones (12 Top & 12 Bottom)
- Hot air or Nitrogen atmosphere
- 4706mm Heated Length
- 2 Chilled Air Cooling Zones (2 top & 2 bottom)
- 400mm Board width (610mm option)
- Edge Pin and Mesh Belt conveyor system
- Conveyor Speed 300-2000mm/min
- Low Running Power Consumption of approx 10kW
- Motorised conveyor width & heated chamber lift
- Heater Blower Speed Control as Standard
- Automatic Chain Lubricator as Standard
- Windows Operating System & Software
- UPS Back-up Power as Standard
For more information or to discuss your reflow requirement please contact us.
