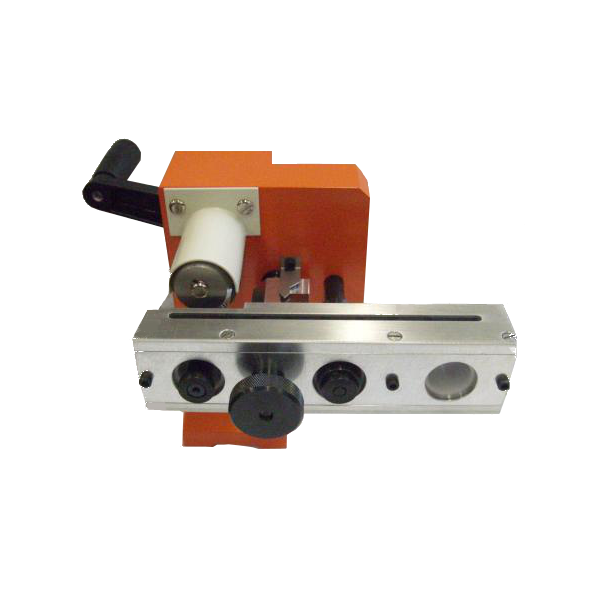

Burst & Zick CO66H Taped Radial Cutting Device

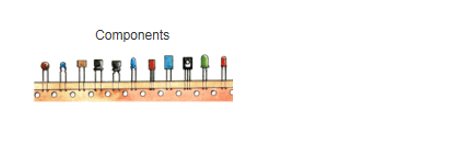

Burst & Zick CO66H Taped Radial Cutting Device is designed to cut the leads of tapes radial leaded components to the required length. The Burst & Zick CO66H machine is extremely simple to use; the operator loads the taped radial component into the reel holder and then adjusts the dial for the desired lead length. The handle is rotated to drive the machine and the components are cut to length and then deposited in the receptacle. The Burst & Zick CO66H requires little if no maintenance and is built to the same exacting German engineering standards as the more expensive machines within the Burst & Zick range of component forming machines.The machine is small and portable and is ideal and quick to set up at any work station allowing flexibility within the work place.
Features
- Simple hand operation
- High throughput
- Portable
Specification
| dimension | 103 x 225 x 240 mm |
| – weight | approx. 2 kg |
| – pitch | arbitrary |
| – tape holepitch | 12,7 mm and 15 mm |
| – lead Ø | max. 1,3 mm |
| – cut length | 2,5 mm and more |
| – operation | manual |
| – production rate | 15.000 pcs/h |

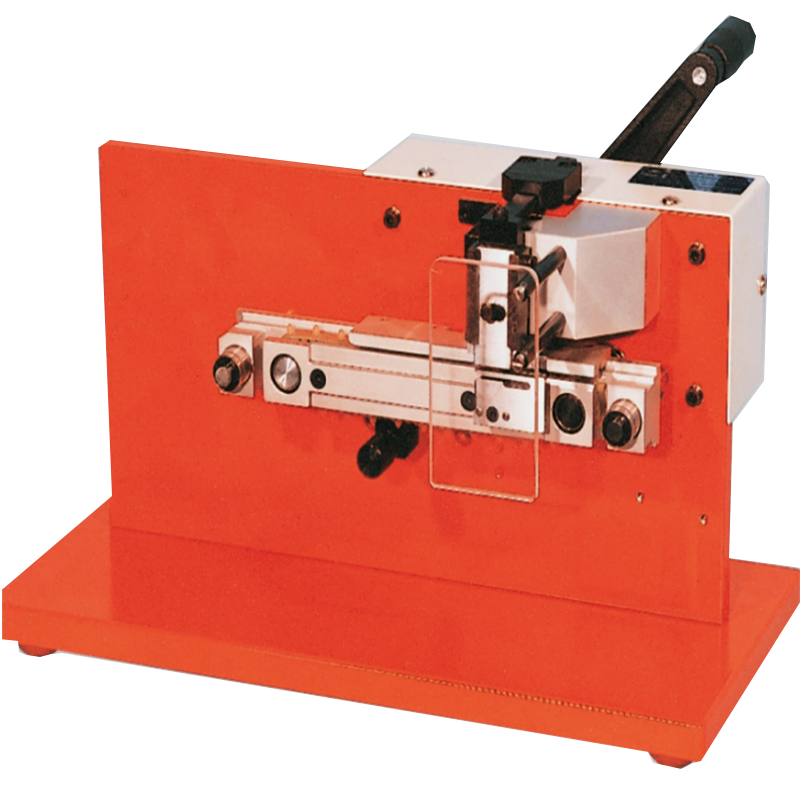

In circumstances where any tape tolerances need to be eliminated we offer the CO66HA – please contact us for more details.
Please contact us should you require any further information relating to component forming.
