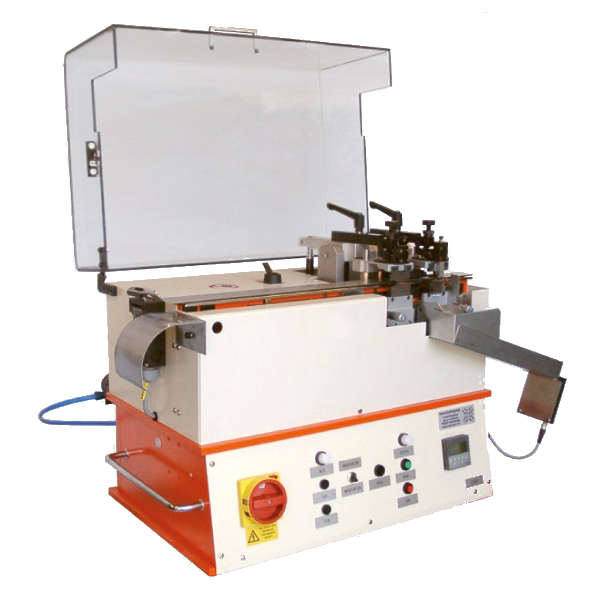

Burst & Zick CO92 Automatic Taped Radial Forming Device

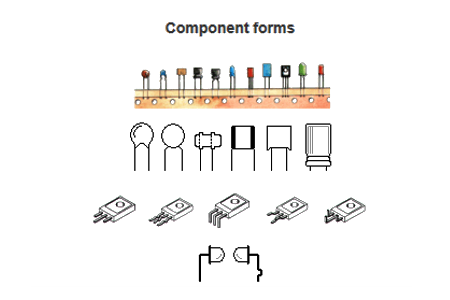

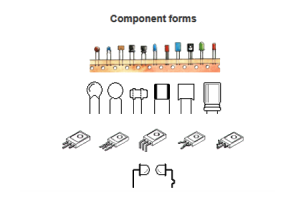

The Burst & Zick CO92 Taped Radial Forming Device has been developed to process taped components with hole pitches of 12.7 mm and 15 mm with one machine. To eliminate any kind of inconsistencies due to variances in taping, this machine is fitted with a touch-tool that will verify the cut length. The machine was developed with two processing units for multiple forming die sets. The forming die inserts can be exchanged very quickly. Because of the dual processing-units a wide range of bending and stamping forms can be processed. The Burst & Zick CO92 Automatic Taped Radial Forming Device can produce virtually any preformed device, if you have an enquiry relating to any component that requires preforming please contact us as we can discuss your requirement and provide a solution accordingly.
Features
- Multiple die sets
- Elimination of tape variance
- Quick tool change
- High throughput
- 12.7mm and 15mm tape pitch compatible
Specification
| dimensions | 650 mm x 450 mm x 500 mm |
| – weight | approx. 35 kg |
| – electrical | 230 V / 50 Hz / 110 W |
| – control | Siemens SPS “LOGO” |
| – pneumatic | 6 bar |
| – pitch | min: 2,5 mm, max.: form dependend |
| – holepitch | 12,7 mm and 15 mm |
| – lead Ø | 0,4 to 1,0 mm |
| – components | taped |
| – delivery | reel or ammopack |
| – rate | with touching max. 3.000 pcs/hr without touching max. 4.000 pcs/hr |
Please contact us should you require any further information relating to component forming.
