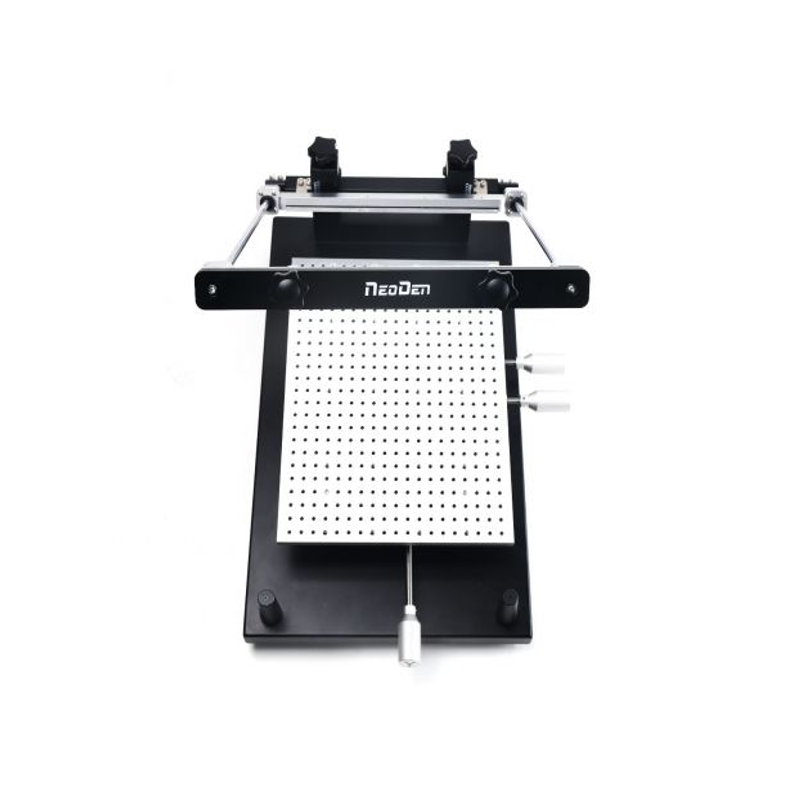

NeoDen FP2636 Manual Stencil Printer – For Frameless Stencils
The NeoDen FP2636 manual stencil printer was developed and released by NeoDen Tech for Europe and is aimed at prototype manufacturing, low volume/start up manufacturing and R&D . The NeoDen FP2636 printer offers unrivalled value for money and allows highly accurate solder paste printing to be achieved at a fraction of the normal cost. Being simple and easy to use, offering high accuracy given careful set up. The NeoDen FP2636 entry-level solder paste printer is supplied with all parts required to start printing within minutes (solder paste and stencil aside – please call us for advice on these items)
Using stencil foils rather than mounted screens within an SMT-printer allows quick set up, cost saving and space saving. The mechanical quick-release frame will save costs for framing. It supports both single-sided and double-sided PCBs. A squeegee and toolbox included. Accurate X, Y and rotation alignment of the PCB table.
These excellent quality, easy set up solder paste printers are available from our UK warehouse for next day delivery, call us now to discuss your requirement.
Technological Features Neoden FP2636 Printer

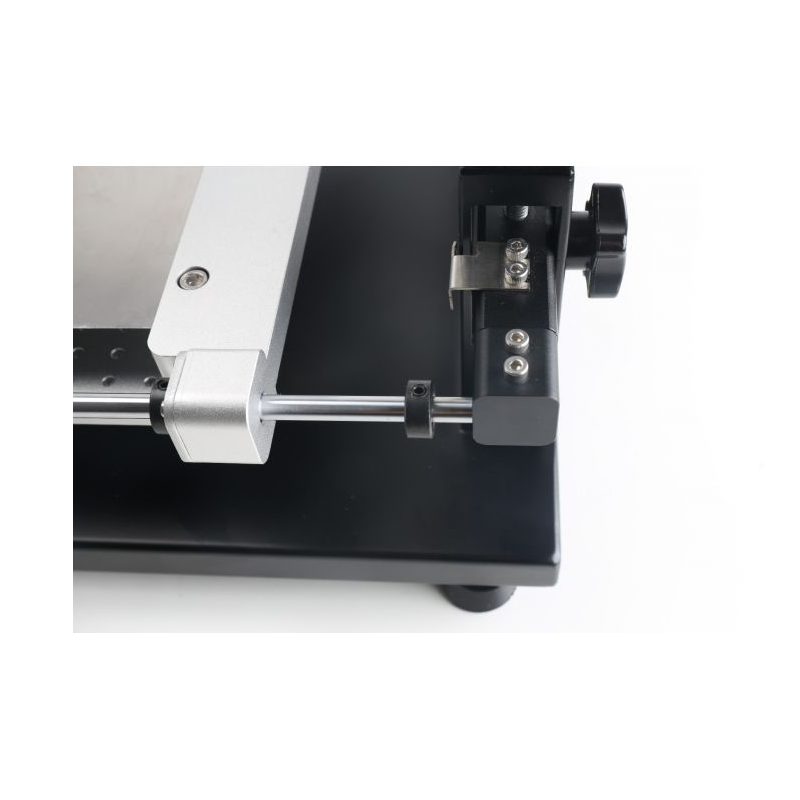

- 3 axis adjustment
- Use of frameless stencils
- Height adjustable for various assembly thicknesses
- max pcb size 280x380mm,
- max stencil size 260x360mm,
- Supplied with manual squeegee

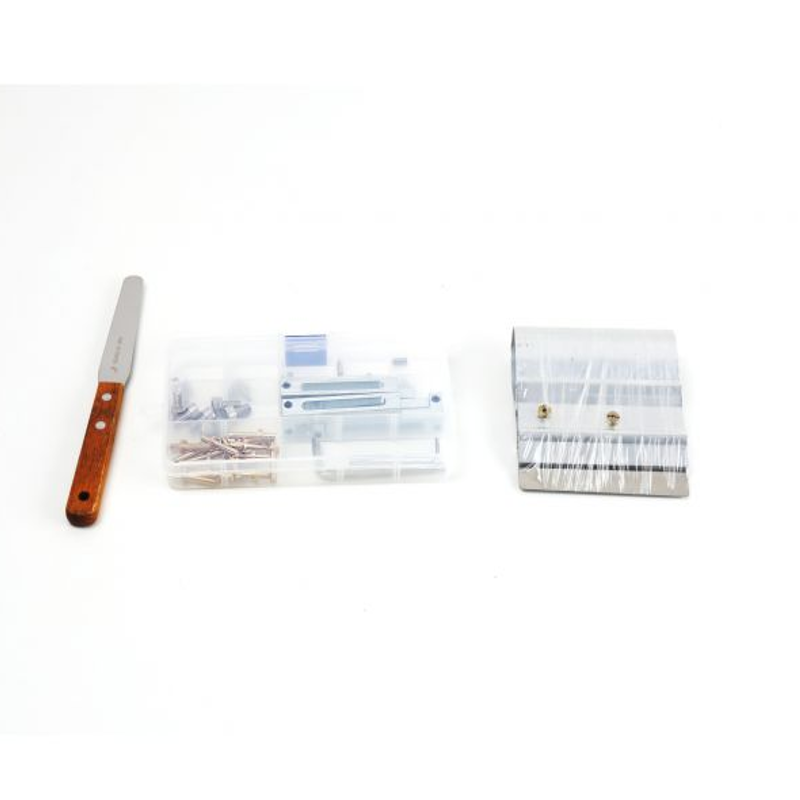

- Tool box and support pins included
- 12kg
- Small footprint
- Shipped from UK stock by next day courier service
Specification Highlights of the FP2636 Stencil Printer: –
| Product name | Stencil printing NeoDen FP2636 (support frameless stencil) |
| Max PCB Size | 11″× 15″ – 280×380mm |
| Min PCB Size | 0.4″× 0.2″ – 10×5mm |
| Screen Stencil Size | 10″× 14″ – 260×360mm |
| Printing Speed | Labour control |
| PCB Thickness | 0- 0.8″ – 0-20mm |
| Platform Height | 7.5″ – 190mm |
| Repeatability | ±0.01mm |
| Max Rotation Angle | ±15° |
| Positioning Mode | Outside/Reference Hole |
| Fine Adjustment Range | Z-axis ±15mm X-axis ±15mm Y-axis ±15mm |
| Positioning Pin Size | ⌀1mm/⌀1.5mm/⌀2.0mm/⌀2.5mm/⌀3mm |
| Dimensions | 660×470×245mm |
| Net Weight | 12KG |
| Gross Weight | 14KG |
Further Information
For further information on the NeoDen FP2636 stencil printer or help is specifying the correct solder paste stencil foil and solder paste for your application please call +44 1260 270950 or contact us by email
