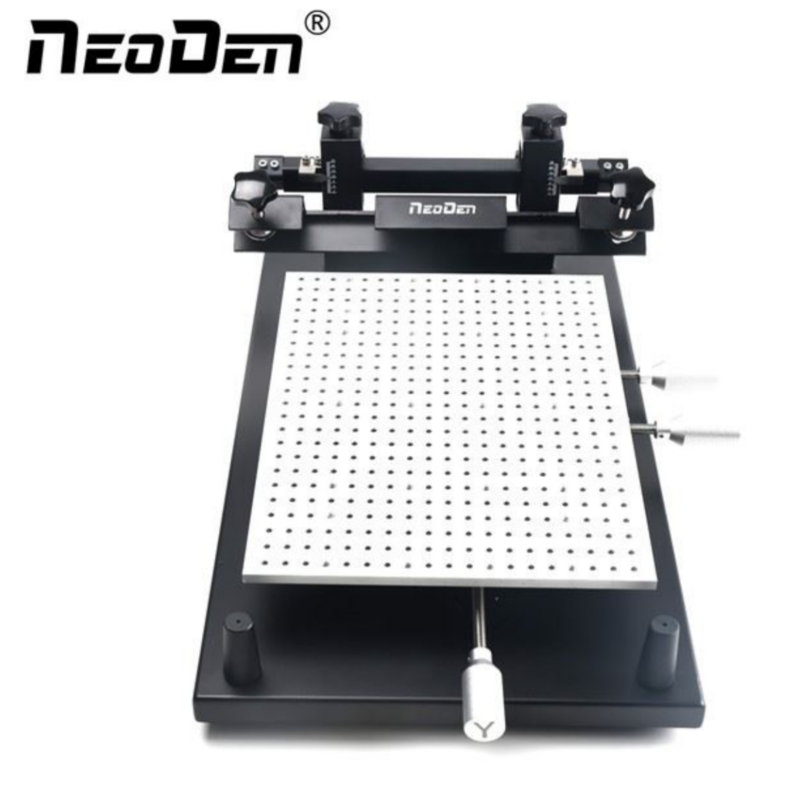

NeoDen FP2636F Framed Stencil Printer
The NeoDen FP2636F framed stencil printer was developed and released by NeoDen Tech for Europe and is aimed at prototype manufacturing, low volume/start up manufacturing and R&D . The NeoDen FP2636 entry-level solder paste printer offers unrivalled value for money and allows highly accurate solder paste printing to be achieved at a fraction of the normal cost. Being simple and easy to use, offering high accuracy given careful set up. The printer is supplied with all parts required to start printing within minutes (solder paste and stencil aside – please call us for advice on these items)
Using traditionally mounted screens rather than stencil foils allows quick set up and high tension . It supports both single-sided and double-sided PCBs. A squeegee and toolbox included. Accurate X, Y and rotation alignment of the PCB table.
Technological Features FP2636F Framed Stencil Printer

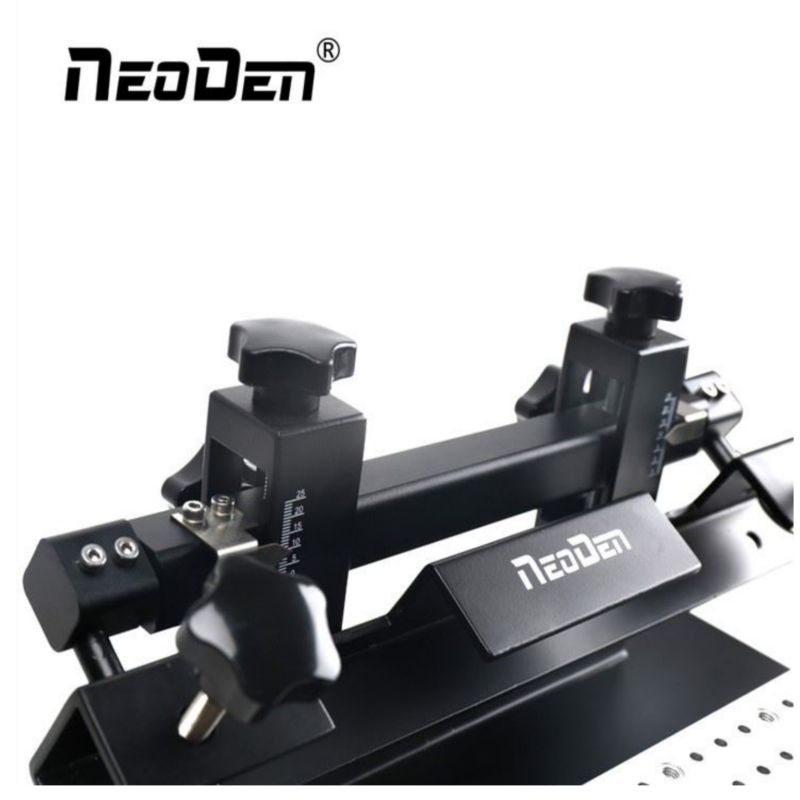

- 3 axis adjustment

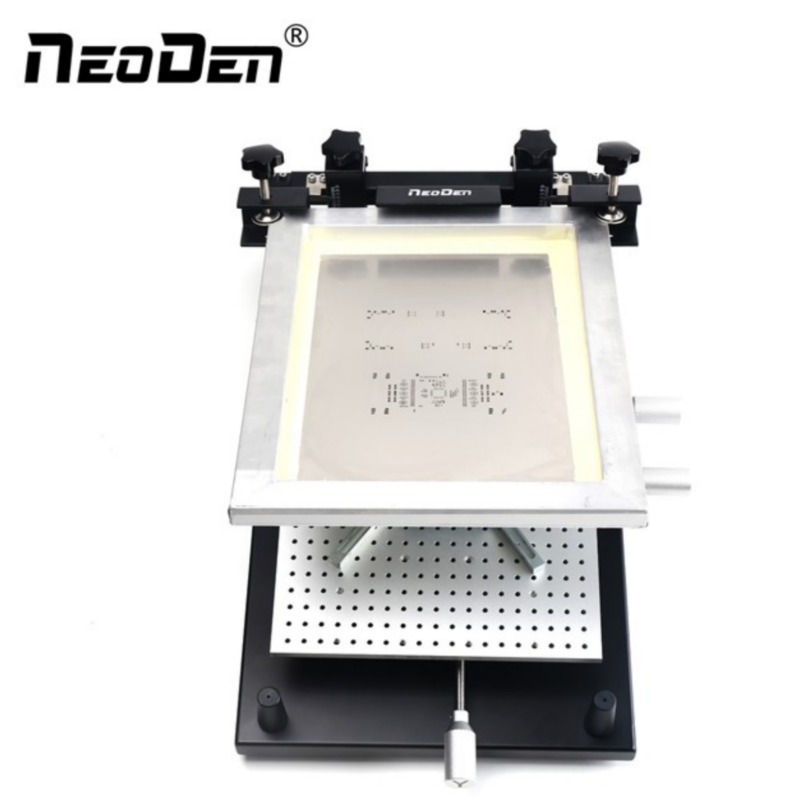

- Use of framed stencils (these are stencils mounted in an aluminium frame)
- Height adjustable for various assembly thicknesses
- max pcb size 260x360mm,
- max stencil size 280x380mm,
- Supplied with manual squeegee
- Tool box and support pins included
- 12kg
- Small footprint
- Shipped from UK stock by next day courier service
Specification Highlights of the FP2636F Framed Stencil Printer: –
| Product name | Stencil printing NeoDen FP2636F (support framed stencil) |
| Max PCB Size | 11″× 15″ – 280×380mm |
| Min PCB Size | 0.4″× 0.2″ – 10×5mm |
| Screen Stencil Size | 10″× 14″ – 260×360mm |
| Printing Speed | Labour control |
| PCB Thickness | 0- 0.8″ – 0-20mm |
| Platform Height | 7.5″ – 190mm |
| Repeatability | ±0.01mm |
| Max Rotation Angle | ±15° |
| Positioning Mode | Outside/Reference Hole |
| Fine Adjustment Range | Z-axis ±15mm X-axis ±15mm Y-axis ±15mm |
| Positioning Pin Size | ⌀1mm/⌀1.5mm/⌀2.0mm/⌀2.5mm/⌀3mm |
| Dimensions | 660×470×245mm |
| Net Weight | 12KG |
| Gross Weight | 14KG |
Further Information
For further information on the NeoDen FP2636F framed stencil printer or help is specifying the correct stencil foil and solder paste for your application please call +44 1260 270950 or contact us by email
