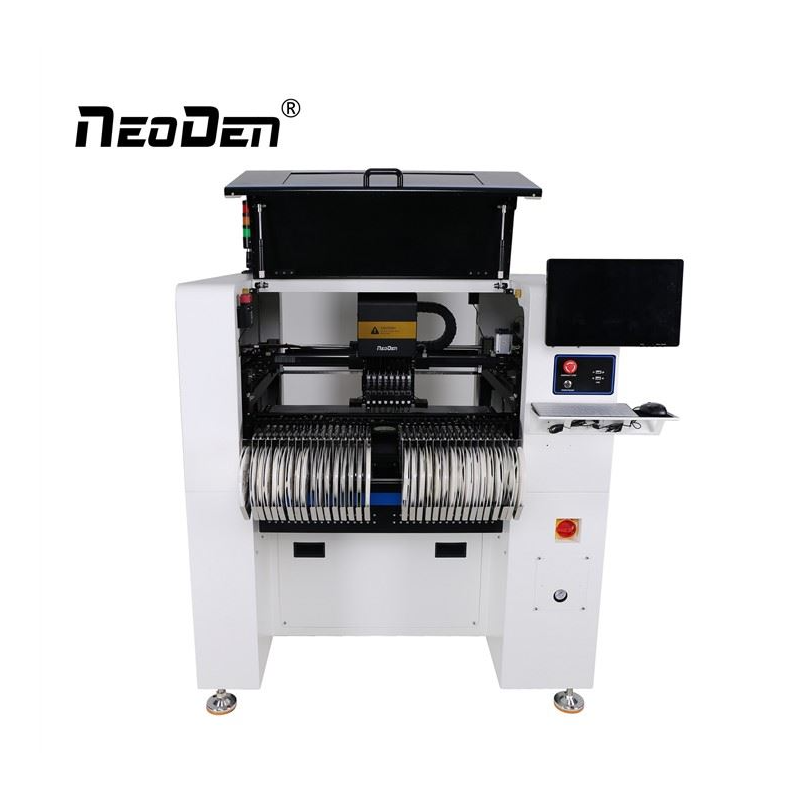

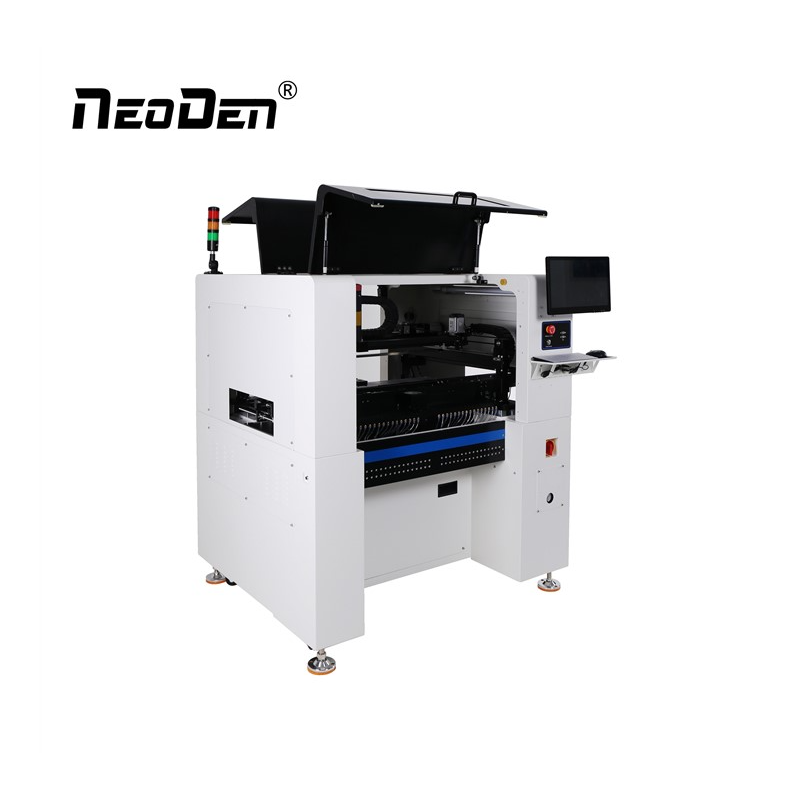

NeoDen K1830 Pick and Place SMT Placement Machine
Available now from our UK warehouse for next day delivery.
The NeoDen K1830 Pick and Place SMT placement machine is a real game changer in the professional SMT assembly industry. Importantly and, for the first time, a high speed, high capability machine is available within the low cost price range normally reserved for prototype machines. Offering full in-line capability and utilising a very stable operating system the NeoDen K1830 is the machine designed to upscale production or to bring currently outsourced PCA manufacturing in house and therefore increase profitability.
The NeoDen K1830 Pick and Place SMT placement machine runs on highly stable and secure Linux operating system. The PCB positional correction is calibrated automatically based on the correct and specific placement request. A closed loop Servo control system with feedback makes the machine highly accurate. High resolution and high speed component camera system improves the overall speed of the machine. The K1830 smt pick and place machine offers the capability of being a SMD chip mounter and a flexible silicon device placer giving the user an all-round option.
Technological Features: NeoDen K1830 Pick and Place SMT Placement Machine
The NeoDen K1830 machine incorporates the following technological features that are normally only available in automatic pick and place equipment of much higher cost that is in use within the electronics assembly sector: –
- Component camera to ensure accuracy of component placement
- Fiducial correction to ensure that the exact placement position on the PCB is achieved every time
- Electrical and/or Pneumatic feeders to provide consistent presentation of the component to the nozzle
- 8 nozzle placement head to provide placement rates of up to 16,000 components per hour
- Simple programming software
- Conveyor to automate the handling of the PCB
- 12 month warranty
- 2 day installation and training (other training packages are available upon request)
Specification Highlights of the NeoDen K1830 Pick and Place : –
- Maximum tape feeder – 66 (electric/ pneumatic)
- Maximum PCB size 540 x 300mm (in single step)
- Large LED board option is available on request (Max 1200mm long) for LED pick and place applications
- Placement accuracy – 0.01mm
- Maximum placement speed – 16,000CPH
- Maximum component height – 18mm
- Power Supply – 220V/160W (Convertible to 110V)
- Air Supply – >0.6Mpa
- Equipment Weight – 280kg
- Packaged Weight – 360kg
- External Dimension (L×W×H) 1288×1062×1291mm(Without Tri-colour lamp)
- Package Dimension (L×W×H) 1420×1220×1665mm
There are both pneumatic and electric versions of feeders available for this machine, please click here.
The NeoDen K1830 is supplied so that the user can “self-install” using the supplied video material and by referring to the manual/guide and can be running electronics manufacturing production in a minimum of time. Neoden features “Plug and Play” technology allowing the user to add extra tape feeders as necessary.
Key market sectors using the Neoden K1830 include consumer electronics, Automotive electronics, Medical electronics and industrial electronics or any sectors that use SMD placed components. The K1830 can be used as a fully automated placement machine within day to day manufacturing or can be used as a small batch or R&D placement machine.
For customer wishing to have the machine professionally installed and receive training from one of our support team we offer installation, training and support packages, we can even create your pick & place programs for you.
Further Information on the entire NeoDen range
For further information on the NeoDen K1830 machine or any other SMT / PCB pick and place application please call +44 1260 270950 or contact us by email.
To see the new Neoden K1830 in action please contact us to arrange a visit to our demo room in Cheshire.
Available in the UK and Ireland.
